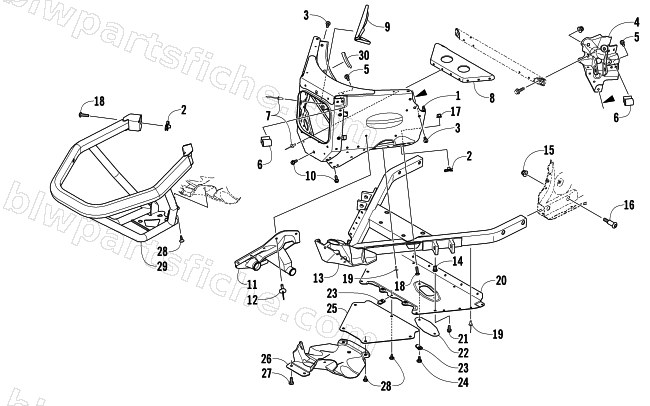

2013 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY LTD — FRONT BUMPER AND FRAME ASSEMBLY
2013 XF 1100 TURBO SNO PRO HIGH COUNTRY LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-180 | KIT,FRT PANEL-TURBO ASSY | 1 | $526.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 4 | 1707-668 | HOUSING,SHOCK MOUNT-UPR RH-PTD BLK | 1 | $101.95 | |
| 4 | 1707-669 | HOUSING,SHOCK MOUNT-UPR LH-PTD BLK | 1 | $101.95 | |
| 5 | 8413-617 | SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353 | 1 | $1.23 | |
| 6 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 7 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 8 | 2707-496 | KIT,STEERING MTG | 1 | $45.95 | |
| 9 | 0607-991 | BRKT,MTG-STEERING STOP | 1 | $16.49 | |
| 10 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 11 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 11 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 12 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 13 | 1707-862 | R/B 3707-131 | 1 | $447.95 | |
| 13 | 1707-861 | R/B 3707-131 | 1 | $481.95 | |
| 14 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 15 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 17 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 18 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 19 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 20 | 0607-983 | BELLYPAN,CENTER-STAMPED | 1 | $37.95 | |
| 21 | 8476-520 | SCREW,MACH-TSTRH M5X0.8X20 Z&Y | 1 | $1.64 | |
| 22 | 1607-108 | COVER,OIL DRAIN-4 STRK | 1 | $24.77 | |
| 23 | 1623-052 | NUT,U | 1 | $0.95 | |
| 24 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 25 | 1607-063 | PANEL,ACCESS | 1 | $12.35 | |
| 26 | 6606-614 | PLATE,SKID-CENTER | 1 | $13.73 | |
| 27 | 2623-033 | SCREW,MACH-TSTRH-M5 X 0.8 X 25 CA PT/W23 | 1 | $1.37 | |
| 28 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 29 | 1707-530 | BUMPER,FRONT-PTD BLK | 1 | $191.95 | |
| 29 | 1707-788 | BUMPER,FRT-PTD WHITE | 1 | $191.95 | |
| 30 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 |
