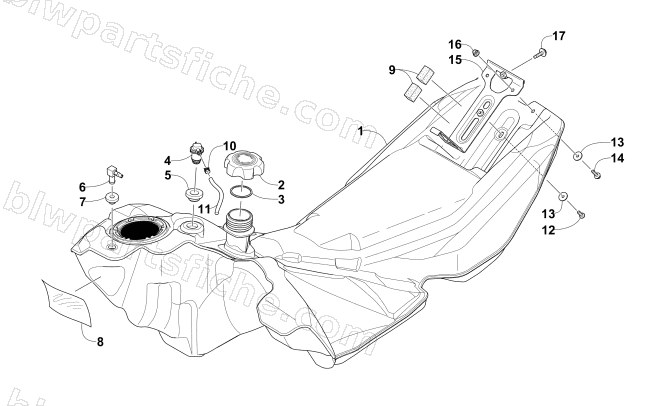

2013 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY LTD — GAS TANK ASSEMBLY
2013 XF 1100 TURBO SNO PRO HIGH COUNTRY LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-016 | TANK,FUEL-TURBO-SP ASSY | 1 | $390.95 | |
| 2 | 2670-048 | CAP,FUEL TANK-91 OCTANE MINIMUM | 1 | $13.73 | |
| 4 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 5 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 6 | 2670-363 | ELBOW,FUEL TANK-TURBO RETURN LINE | 1 | $20.63 | |
| 7 | 2670-364 | GROMMET,FUEL TANK-TURBO RETURN LINE | 1 | $12.35 | |
| 8 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 9 | 0617-667 | FOAM,GAS TANK | 1 | $1.92 | |
| 10 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 11 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 11 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 12 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 13 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 14 | 8410-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 RIE BLK | 1 | $0.95 | |
| 15 | 5706-098 | BRKT,MTG-SEAT LATCH-WELDT | 1 | $41.95 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 |
