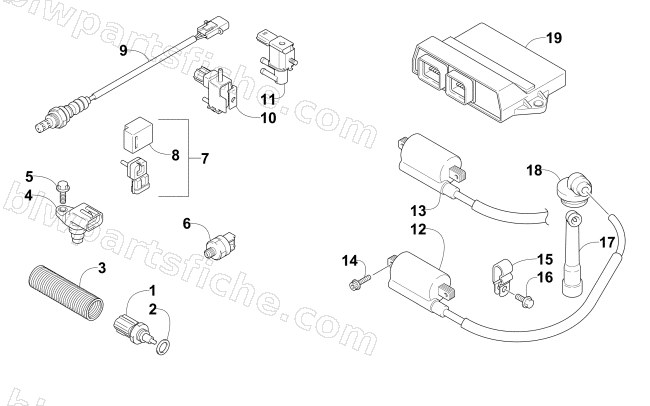

2013 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY — ELECTRICAL ASSEMBLY
2013 XF 1100 TURBO SNO PRO HIGH COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-060 | SENSOR,WATER TEMP | 1 | $216.95 | |
| 2 | 3530-047 | GASKET,WATER TEMP SENSOR | 1 | $4.40 | |
| 3 | 3007-218 | PROTECTOR,WATER TEMP SENSOR | 1 | $23.39 | |
| 4 | 3007-216 | SENSOR ASSY,CAM POSITION | 1 | $318.95 | |
| 5 | 3007-392 | BOLT | 1 | $3.95 | |
| 6 | 3006-844 | SWITCH ASS'Y,OIL PRESSURE | 1 | $68.95 | |
| 7 | 3007-517 | SENSOR,BOOST (AIR PRESSURE) | 1 | $432.95 | |
| 8 | 3007-213 | COVER | 1 | $22.95 | |
| 9 | 3006-588 | SENSOR,OXYGEN | 1 | $473.95 | |
| 10 | 3006-883 | VALVE, ABV CONTROL | 1 | $288.95 | |
| 11 | 3007-834 | VALVE,WASTE GATE CONT | 1 | $236.95 | |
| 12 | 3007-835 | COIL ASSY,IGNITION | 1 | $197.95 | |
| 13 | 3007-836 | COIL ASSY,IGNITION | 1 | $197.95 | |
| 14 | 3007-426 | BOLT | 1 | $3.16 | |
| 15 | 3007-837 | CLAMP,HT CORD | 1 | $8.21 | |
| 16 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 17 | 3007-838 | CAP ASSY,SPARK PLUG | 1 | $77.95 | |
| 18 | 3007-839 | SEAL,HT CORD | 1 | $19.25 | |
| 19 | 0730-152 | ECU,TURBO, 012,F,C,M | 1 | $2,582.95 |
