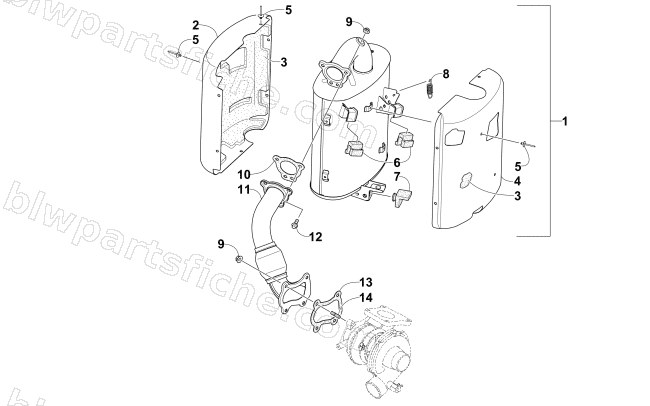

2013 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY — EXHAUST ASSEMBLY
2013 XF 1100 TURBO SNO PRO HIGH COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-760 | RESONATOR,EXHAUST-TURBO-ASSY | 1 | $1,093.95 | |
| 2 | 2612-650 | SHIELD,HEAT-MUFFLER-RH TURBO | 1 | $126.95 | |
| 3 | 2612-648 | PACKING,RESONATOR | 1 | $17.87 | |
| 4 | 2612-651 | SHIELD,HEAT-MUFFLER-LH TURBO | 1 | $121.95 | |
| 5 | 1623-799 | RIVET,BLIND-LF SD61BSLF ZINC | 1 | $0.95 | |
| 6 | 2612-893 | GROMMET,RUBBER-UPR | 1 | $17.87 | |
| 7 | 2612-706 | GROMMET,RUBBER-LOWER | 1 | $5.65 | |
| 8 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 9 | 1623-912 | NUT,HEX FLG-TOP LOCK M8X1.25 CL8 HI TEMP | 1 | $1.64 | |
| 10 | 2612-663 | GASKET, EXHAUST | 1 | $26.95 | |
| 11 | 1712-698 | MANIFOLD,EXHAUST-TURBO-WELD'T | 1 | $228.95 | |
| 12 | 1623-918 | SCREW,CAP-HFH M8X1.25X20 CL8.8 HI TEMP | 1 | $1.64 | |
| 13 | 2612-701 | GASKET,EXHAUST MANIFOLD-TURBO | 1 | $32.95 | |
| 14 | 1623-954 | STUD,M8X1.25-EXHAUST MANIFOLD | 1 | $10.97 |
