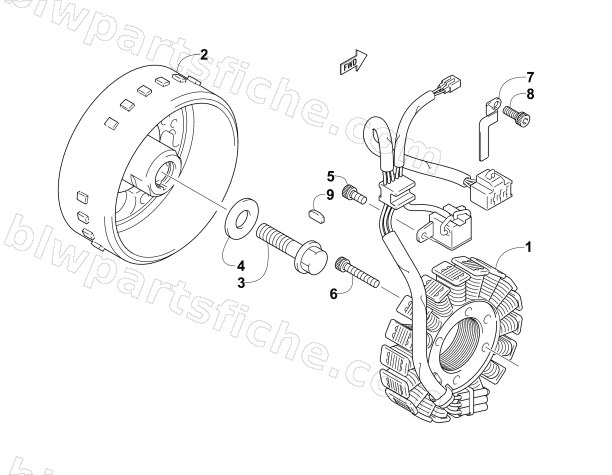

2013 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY — MAGNETO ASSEMBLY
2013 XF 1100 TURBO SNO PRO HIGH COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-231 | STATOR ASSY | 1 | $515.95 | |
| 2 | 3007-232 | ROTOR ASSY | 1 | $1,164.95 | |
| 3 | 3007-233 | BOLT,FLYWHEEL (12X40) | 1 | $3.44 | |
| 4 | 3007-234 | WASHER,FLYWHEEL (12X30X3) | 1 | $3.95 | |
| 5 | 3007-519 | BOLT,PULSER COIL | 1 | $3.16 | |
| 6 | 3007-450 | BOLT | 1 | $3.85 | |
| 7 | 3007-235 | CLAMP,LEAD WIRE | 1 | $8.21 | |
| 9 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
