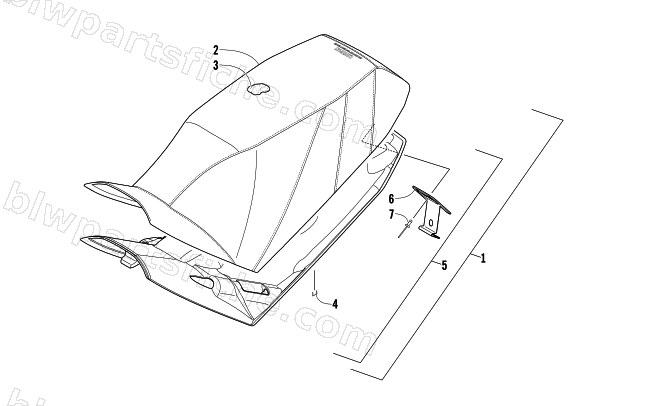

2013 Arctic Cat XF 800 HIGH COUNTRY SNO PRO LTD — SEAT ASSEMBLY
2013 XF 800 HIGH COUNTRY SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-429 | SEAT,ASSY-M 800 BLK LTD | 1 | $713.95 | |
| 1 | 5706-428 | SEAT,ASSY-M 800 PC PRL WHT | 1 | $713.95 | |
| 2 | 5706-425 | COVER,SEAT-M 800 BLK LTD | 1 | $432.95 | |
| 2 | 5706-424 | COVER,SEAT-M 800 PC PRL WHT | 1 | $432.95 | |
| 3 | 0717-203 | FOAM,SEAT-MTN (.48 RATIO @ 3.8 75-81ILD) | 1 | $164.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 5706-241 | BASE,SEAT-MC-W/SEAT LATCH HOOK | 1 | $133.95 | |
| 6 | 6606-452 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 7 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 |
