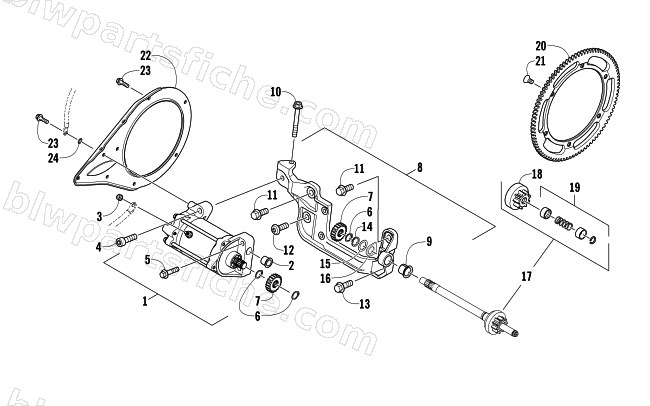

2013 Arctic Cat XF 800 HIGH COUNTRY SNO PRO LTD — STARTER MOTOR ASSEMBLY
2013 XF 800 HIGH COUNTRY SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-370 | R/B 0745-418 | 1 | $400.95 | |
| 2 | 0645-108 | BUSHING,SHAFT-PINION (OILITE) | 1 | $19.25 | |
| 3 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 4 | 1423-093 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $3.30 | |
| 5 | 8408-836 | SCREW,CAP-HFH M8X1.25X35 CL8.8 w/2353 | 1 | $2.47 | |
| 6 | 0645-638 | RING,RETAINING-EXTERNAL-14mm-SHAFT | 1 | $2.75 | |
| 7 | 0645-678 | GEAR,STARTER-20T-9.52MM | 1 | $22.01 | |
| 8 | 0745-361 | BRKT, STARTER W/BUSHING-ASSY | 1 | $105.95 | |
| 9 | 0645-717 | BUSHING, PINION SHAFT | 1 | $5.09 | |
| 10 | 1623-945 | SCREW,CAP-HFH-M8X1.25X65 CL 10.9 | 1 | $6.89 | |
| 11 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 12 | 1623-963 | SCREW,MACH-TSTRH M10X1.25X30 Z&Y/CL 10.9 | 1 | $4.26 | |
| 13 | 8409-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $3.16 | |
| 14 | 0645-382 | SNAP RING,EXTERNAL - .625 DIA | 1 | $1.64 | |
| 15 | 0645-429 | WASHER,THRUST .630I.D. X .915 O.D. | 1 | $3.95 | |
| 16 | 0645-693 | WASHER,THRUST-16ID X 23.2 OD X 2.66mm | 1 | $35.95 | |
| 17 | 0745-404 | R/B 0745-424 | 1 | $285.95 | |
| 18 | 0645-686 | GEAR,PINION-10T | 1 | $102.95 | |
| 19 | 0745-398 | STOPPER,PINION-KIT | 1 | $43.95 | |
| 20 | 0745-402 | RING GEAR,ELECTRIC START-TREATED | 1 | $153.95 | |
| 21 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 | |
| 22 | 0645-694 | PLATE,MTG-STARTER MOTOR | 1 | $46.95 | |
| 23 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 24 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
