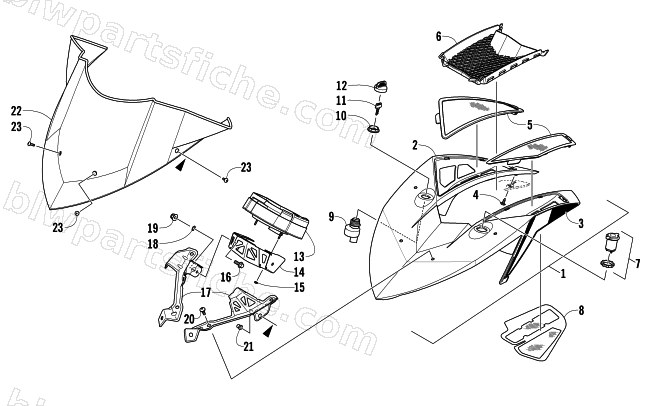

2013 Arctic Cat XF 800 HIGH COUNTRY SNO PRO — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2013 XF 800 HIGH COUNTRY SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-511 | COWL,HEADLIGHT-BLK-ROUTED W/DECALS | 1 | $168.95 | |
| 2 | 5706-232 | COWL,HEADLIGHT-BLK-ROUTED | 1 | $145.95 | |
| 3 | 0621-066 | DECAL,COWL-BLK-RH | 1 | $33.95 | |
| 3 | 0621-067 | DECAL,COWL-BLK-LH | 1 | $33.95 | |
| 4 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 5 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 5 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 6 | 6606-576 | VENT,POD-2 STROKE VERTICAL | 1 | $33.95 | |
| 7 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 8 | 0608-688 | SCREEN,AIR INTAKE-RH | 1 | $27.95 | |
| 8 | 0608-689 | SCREEN,AIR INTAKE-LH | 1 | $27.95 | |
| 9 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 10 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 11 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 11 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 12 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 13 | 0620-391 | SPEEDO/TACH-PREMIUM-CALIB (XF/M) | 1 | $683.95 | |
| 14 | 6606-288 | BRKT,GAUGE-CENTER | 1 | $26.95 | |
| 15 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 16 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 17 | 6606-130 | BRKT,GAUGE-RH | 1 | $20.63 | |
| 17 | 6606-131 | BRKT,GAUGE-LH | 1 | $11.79 | |
| 18 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 21 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 22 | 6606-376 | WINDSHIELD,LOW-BLACK | 1 | $129.95 | |
| 23 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
