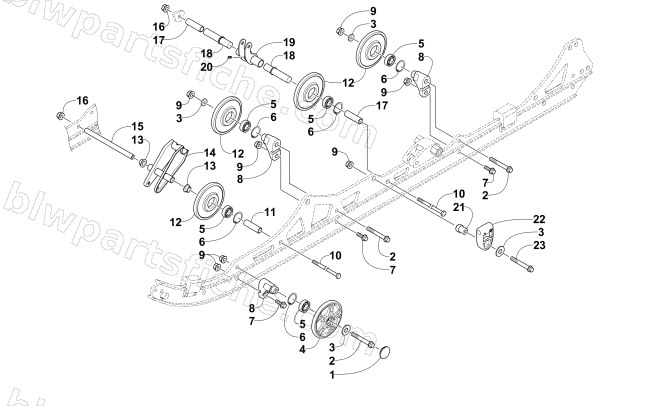

IDLER WHEEL ASSEMBLY
2014 BEARCAT 570 XTE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 | |
| 2 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 | |
| 3 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 4 | 3604-299 | WHEEL,IDL-5.63 W.787"ID WHITE | 1 | $53.95 | |
| 5 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 6 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 7 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 8 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 2623-078 | SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI | 1 | $24.77 | |
| 11 | 3604-432 | SPACER, ALUM-THK WALL | 1 | $26.95 | |
| 12 | 3604-807 | WHEEL,IDL-5.63 W.787"ID-BLK (NO SPK) | 1 | $53.95 | |
| 13 | 3604-430 | SPACER, WHEEL-SHOCK PIVOT | 1 | $12.35 | |
| 14 | 1704-770 | BRKT, MTG-FRONT SHOCK-PTD BLK | 1 | $46.95 | |
| 15 | 3604-429 | AXLE, STEEL-M10X344.55 | 1 | $27.95 | |
| 16 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 17 | 3604-501 | SPACER, REAR WHEEL-INNER | 1 | $5.92 | |
| 18 | 3604-502 | AXLE,CROSS-FRONT-BCXT | 1 | $53.95 | |
| 19 | 1704-674 | PIVOT, REAR SHOCK-FABR | 1 | $42.95 | |
| 20 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 21 | 3604-204 | BLOCK,SLIDE-SPRING-PM-1.20" | 1 | $13.73 | |
| 22 | 2604-516 | SLIDE, SPRING-TALL | 1 | $6.06 | |
| 23 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 |
