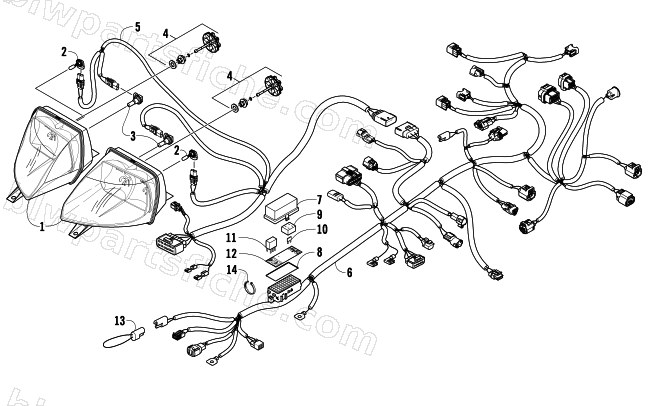

HEADLIGHT AND WIRING ASSEMBLIES
2014 BEARCAT Z1 XT GS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-870 | HEADLIGHT,RH BLK-ASSY | 1 | $209.95 | |
| 1 | 0609-871 | HEADLIGHT,LH BLK-ASSY | 1 | $209.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-782 | BULB,HIGH BEAM | 1 | $49.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-547 | HARNESS,CONSOLE-4-STROKE | 1 | $206.95 | |
| 6 | 1686-613 | HARNESS, MAIN (2011 Z1 XT) | 1 | $1,217.95 | |
| 7 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 8 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 9 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 10 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 10 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 10 | 0430-099 | FUSE,MINI-25A | 1 | $2.95 | |
| 10 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 11 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 11 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 12 | 8611-663 | DECAL,POWER DISTRIBUTION MODULE-4 STK | 1 | $13.95 | |
| 13 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
