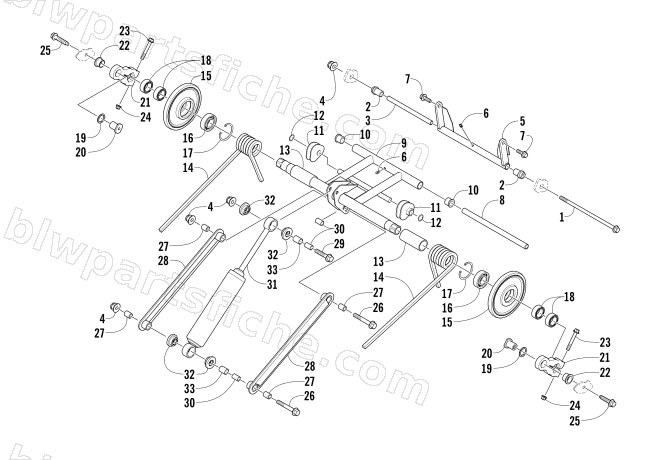

REAR SUSPENSION REAR ARM ASSEMBLY
2014 BEARCAT Z1 XT GS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2623-078 | SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI | 1 | $24.77 | |
| 2 | 3604-286 | BUSHING,REAR ARM-PWD METAL | 1 | $5.92 | |
| 3 | 3604-441 | AXLE, INNER-REAR ARM-M10X278.00 | 1 | $22.01 | |
| 4 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 1704-779 | ARM, REAR-FABR | 1 | $73.95 | |
| 6 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 7 | 8408-041 | SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353 | 1 | $0.95 | |
| 8 | 3604-440 | AXLE, IDLER ARM-LWR-M10X296.3 | 1 | $37.95 | |
| 9 | 1704-928 | ARM,IDLER-HEX-526.4-FABR | 1 | $333.95 | |
| 10 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 11 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 11 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 12 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 13 | 3604-288 | SLEEVE,SPRING-108mm | 1 | $3.44 | |
| 14 | 1704-842 | SPRING, SUSP-.437 SQ-24 LB -RH-PTD BLK | 1 | $126.95 | |
| 14 | 1704-843 | SPRING, SUSP-.437 SQ-24 LB -LH-PTD BLK | 1 | $126.95 | |
| 15 | 3604-264 | WHEEL,IDLER-7.12(NO INSERT/30mm BEARING) | 1 | $53.95 | |
| 16 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 17 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 18 | 3604-289 | SPACER,OFFSET ARM-HEX SHAFT | 1 | $2.06 | |
| 19 | 1604-187 | WASHER, OFFSET ARM | 1 | $2.06 | |
| 20 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 21 | 1704-627 | OFFSET ARM,FLANGE-HEX ASSY | 1 | $54.95 | |
| 22 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 23 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 24 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 25 | 1623-836 | SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z&Y-MPT | 1 | $2.75 | |
| 26 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 27 | 3604-330 | AXLE, LINK-REAR SHOCK-M10 | 1 | $2.47 | |
| 28 | 0704-929 | LINK, REAR SHOCK-13.50-PAINTED | 1 | $46.95 | |
| 29 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 30 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 31 | 3604-442 | SHOCK, TRUCK-2"-420MM | 1 | $272.95 | |
| 32 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 33 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 |
