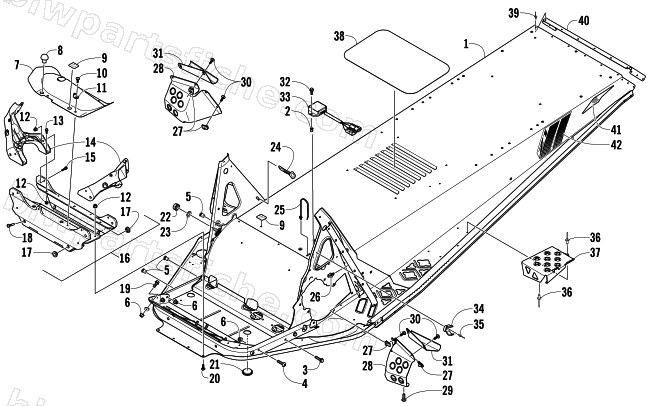

CHASSIS ASSEMBLY
2014 BEARCAT Z1 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-629 | CHASSIS,BCXT Z1-SPR ASSY-W/INSERT | 1 | $2,696.95 | |
| 2 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 3 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 4 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 5 | 0423-391 | INSERT,M6X1.0-AL SERIES ALS4-610-4.2 | 1 | $3.57 | |
| 6 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 4706-300 | CLOSE OFF,COVER-FRONT END-PTD BLK | 1 | $75.95 | |
| 8 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 9 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 10 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 11 | 4606-770 | TAB,RESONATOR MTG | 1 | $9.59 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 14 | 0607-806 | FRAME, UPPER-SHOCK MTG-RH | 1 | $128.95 | |
| 14 | 0607-807 | FRAME, UPPER-SHOCK MTG-LH | 1 | $128.95 | |
| 15 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 16 | 1707-170 | BRKT, FRT SUSP MTG-W/BUSHINGS | 1 | $465.95 | |
| 17 | 0605-763 | BUSHING,LWR A-ARM | 1 | $3.44 | |
| 18 | 1623-443 | BOLT, RIBBED NECK M6 X 35 Z&Y | 1 | $1.78 | |
| 19 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 20 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 21 | 1623-625 | PLUG,CENTER PAN | 1 | $1.09 | |
| 22 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 23 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 24 | 4606-454 | STRAP,HOLDDOWN-UPR PANEL-RH | 1 | $4.68 | |
| 24 | 4606-455 | STRAP,HOLDDOWN-UPR PANEL-LH | 1 | $4.68 | |
| 25 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 26 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 27 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 28 | 3606-710 | SHIELD, TOE-RH | 1 | $69.95 | |
| 28 | 3606-711 | SHIELD, TOE-LH | 1 | $69.95 | |
| 30 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 31 | 3606-920 | BRKT, TOE HOOK-RH | 1 | $19.25 | |
| 31 | 3606-921 | BRKT, TOE HOOK-LH | 1 | $19.25 | |
| 32 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 | |
| 33 | 0630-255 | REGULATOR, 3 PHASE-40A DC | 1 | $188.95 | |
| 34 | 1670-826 | BRKT,FUEL FILTER-F3 | 1 | $6.34 | |
| 35 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 36 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 37 | 5606-580 | FOOTREST, PASSENGER-RH | 1 | $54.95 | |
| 37 | 5606-581 | FOOTREST, PASSENGER-LH | 1 | $54.95 | |
| 38 | 5606-514 | PAD,TOOL BOX-BCWT | 1 | $34.95 | |
| 39 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 40 | 5606-515 | CLOSE-OFF,REAR TUNNEL-BCWT | 1 | $37.95 | |
| 41 | 6611-688 | DECAL, REFLECTOR-RH | 1 | $15.11 | |
| 41 | 6611-689 | DECAL, REFLECTOR-LH | 1 | $15.11 | |
| 42 | 0621-580 | DECAL,TUNNEL-BLUE-RH | 1 | $85.95 | |
| 42 | 0621-581 | DECAL,TUNNEL-BLUE-LH | 1 | $85.95 | |
| 42 | 0621-592 | DECAL,TUNNEL-ORN-RH | 1 | $85.95 | |
| 42 | 0621-593 | DECAL,TUNNEL-ORN-LH | 1 | $85.95 |
