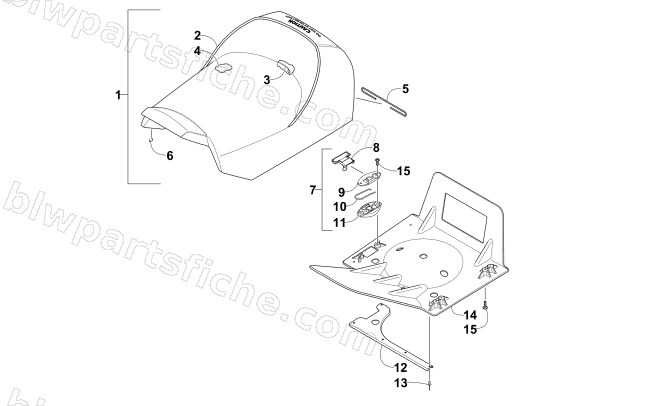

FRONT SEAT ASSEMBLY
2014 BEARCAT Z1 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-650 | SEAT, FRONT-MFG ASSY-BCWT | 1 | $713.95 | |
| 2 | 4706-649 | COVER, SEAT-FRONT-BCWT | 1 | $333.95 | |
| 3 | 5606-378 | WIRE,SEAT-BENT | 1 | $5.09 | |
| 4 | 4706-118 | FOAM, SEAT-FRONT-BCWT .44R@5.0/70-75ILD | 1 | $208.95 | |
| 5 | 5606-379 | WIRE,SEAT - 229 MM - FORMED | 1 | $0.40 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 2706-164 | SEAT LATCH-MFG ASSY | 1 | $15.11 | |
| 8 | 2606-854 | LEVER,RELEASE-SEATLATCH | 1 | $9.59 | |
| 9 | 1673-635 | COVER,LATCH-SEAT | 1 | $5.95 | |
| 10 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 11 | 1673-634 | BACK,LATCH-SEAT | 1 | $8.95 | |
| 12 | 4706-529 | BRKT,SEATBASE-PTD BLK | 1 | $32.95 | |
| 13 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 14 | 5606-371 | SEAT BASE - FRONT - BCWT | 1 | $97.95 | |
| 15 | 1623-609 | SCREW,PT THREAD FORMING-K60-2.69X22MM | 1 | $3.16 |
