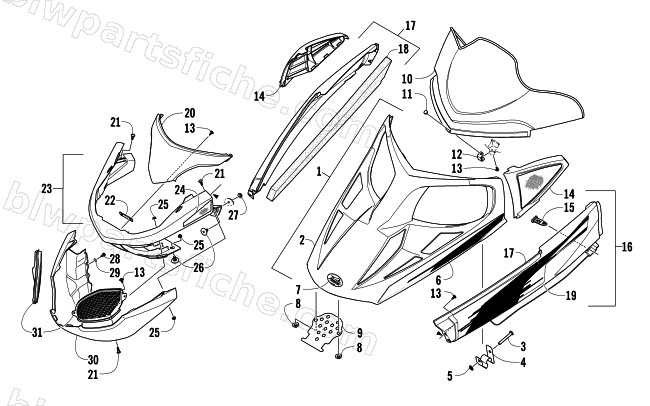

2014 Arctic Cat F570 — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2014 F570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-430 | LID,HOOD-GRN-W/O VENTS-W/DECALS | 1 | $266.95 | |
| 2 | 7901-374 | LID,HOOD-GRN W/O VENTS-MFG ASSY | 1 | $187.95 | |
| 3 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 4 | 5706-084 | CLIP,HOLDDOWN-HOOD LID-RH-PTD BLK | 1 | $15.11 | |
| 4 | 5706-085 | CLIP,HOLDDOWN-HOOD LID-LH-PTD BLK | 1 | $15.11 | |
| 5 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 6 | 9611-932 | DECAL,HOOD-RH-GRN | 1 | $29.95 | |
| 6 | 9611-933 | DECAL,HOOD-LH-GRN | 1 | $29.95 | |
| 7 | 9611-752 | DECAL,EMBLEM-GREEN | 1 | $43.95 | |
| 8 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 9 | 5606-042 | BRKT, LID HINGE-08 PROD | 1 | $33.95 | |
| 10 | 5606-961 | WINDSHIELD,MID | 1 | $224.95 | |
| 11 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 12 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 13 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 14 | 5606-920 | BEZEL,INTAKE-RH-GRN ASSY | 1 | $37.59 | |
| 14 | 5606-921 | BEZEL,INTAKE-LH-GRN ASSY | 1 | $54.95 | |
| 15 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 16 | 3718-428 | SPAR,FRONT-RH-BLK/GRN W/DECALS | 1 | $95.95 | |
| 16 | 3718-429 | SPAR,FRONT-LH-BLK/GRN W/DECALS | 1 | $95.95 | |
| 17 | 3718-642 | SPAR,FRONT-RH-GRN W/O DECALS | 1 | $59.95 | |
| 17 | 3718-643 | SPAR,FRONT-LH-GRN W/O DECALS | 1 | $59.95 | |
| 18 | 0617-656 | FOAM,SPAR-RH | 1 | $17.87 | |
| 18 | 0617-657 | FOAM,SPAR-LH | 1 | $17.87 | |
| 19 | 9611-934 | DECAL,FRT SPAR-RH-GRN | 1 | $45.95 | |
| 19 | 9611-935 | DECAL,FRT SPAR-LH-GRN | 1 | $45.95 | |
| 20 | 4606-519 | FACIA,BUMPER-UPPER-MOLD GRN | 1 | $79.95 | |
| 21 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 22 | 5606-953 | SPACER,UPPER FASCIA | 1 | $3.44 | |
| 23 | 2718-925 | BUMPER,FRONT CLIP-MOLD WHT W/ REFL | 1 | $163.95 | |
| 24 | 9611-384 | DECAL,REFLECTOR-AMBER RH | 1 | $29.95 | |
| 24 | 9611-385 | DECAL,REFLECTOR-AMBER LH | 1 | $29.95 | |
| 25 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 26 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 27 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 28 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 29 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 30 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 31 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 31 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
