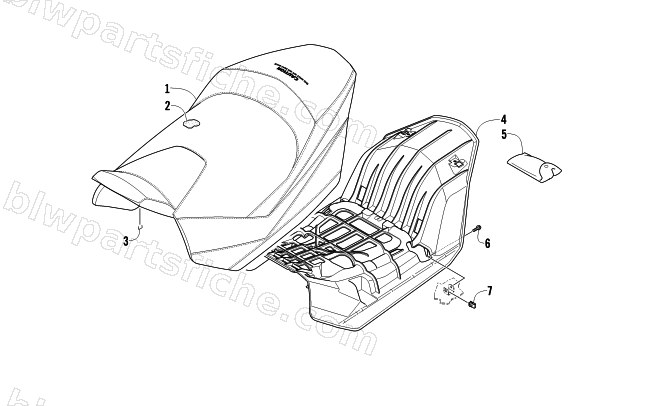

2014 Arctic Cat F570 — SEAT ASSEMBLY
2014 F570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 5706-137 | SEAT,GRN-MFG ASSY | 1 | $1,093.95 | |
| 1 | 5706-136 | COVER,SEAT-GRN-NON ADJUST | 1 | $432.95 | |
| 2 | 0617-553 | FOAM, SEAT-F/C (109-115ILD).50R@5.0 | 1 | $156.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 4706-752 | SEAT BASE,PLASTIC-ROUTED | 1 | $108.95 | |
| 5 | 4706-072 | KIT,TOOL BAG ASSY (F3 CARB) | 1 | $29.95 | |
| 6 | 8408-535 | SCREW, CAP-HFH M5X0.8X35 CL8.8 Z&Y | 1 | $2.06 | |
| 7 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 |
