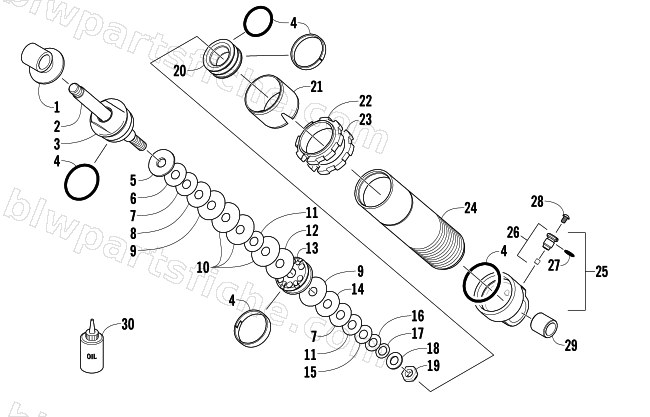

REAR SUSPENSION FRONT ARM SHOCK ABSORBER

2014 M 6000 SNO PRO 153

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	2704-365	R/B 2704-695	1	$153.95
1	3604-797	EYELET,SHOCK-FRT ARM-FORGED	1	$92.95
2	3604-763	SHAFT,CHROME-12.66MM X 146MM	1	$94.95
3	4604-125	BEARING,ENDCAP-SHORT-W/BLEED ASSY-NEW	1	$49.95
4	4604-121	SEAL/BEARING - REBUILD KIT-37MM	1	$58.95
5	3604-789	WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK	1	$3.95
6	3603-122	VALVE,SHOCK-25.4 OD X .15 (9.6ID)	1	$6.95
7	3603-124	VALVE,SHOCK-25.4 OD X 0.2 (9.6 ID)	1	$6.95
8	3603-145	VALVE,SHOCK-27.94 OD X .25 (9.6 ID)	1	$6.95
9	3603-175	VALVE,SHOCK-31.75 OD X .25 (9.6 ID)	1	$6.95
10	3603-184	VALVE,SHOCK-33.02 OD X 0.2 (9.6 ID)	1	$6.95
11	3603-114	VALVE,SHOCK-22.86 OD X 0.2 (9.6 ID)	1	$6.95
12	3603-182	VALVE,SHOCK-33.02DIA X .15 (9.60 ID)	1	$6.95
13	2603-998	PISTON, 37 BORE-1.60 ORIFICE	1	$40.95
14	3603-144	VALVE,SHOCK-27.94 OD X 0.2 (9.6 ID)	1	$6.95
15	3603-104	VALVE,SHOCK-20.32 OD X 0.2 (9.6ID)	1	$6.95
16	3603-092	VALVE,SHOCK-17.78 OD X 0.15 (9.6 ID)	1	$10.95
17	2603-015	VALVE,SHOCK-13.97 OD X 0.5 X (9.6 ID)	1	$6.95
18	3604-775	WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID)	1	$3.95
19	3604-739	NUT, HEX - 3/8"-24UNF	1	$4.95
20	3604-772	PISTON.FLOAT-ASSY	1	$35.95
21	3604-773	GUIDE,SPRING-ALUM BODY	1	$32.95
22	2603-014	RING,PRELOAD LOCK-SHOULDERED	1	$53.95
23	3604-779	RING,PRELOAD LOCK	1	$45.95
24	3604-758	BODY,SHOCK-ALUM-37.20 BORE- 143.80	1	$109.95
25	2704-257	BODY,CAP-ALUM BODY-ASSY	1	$164.95
26	3604-751	VALVE,PRESSURE-ASSY	1	$124.95
28	3604-750	SCREW.MACH-#8-32 X 5mm-SS	1	$2.47
29	3604-906	BEARING,SHOCK FRT ARM-25.45 X 22.4X18.54	1	$5.09
30	5639-530	SEMI-SYN SHOCK OIL-1 QUART	1	$26.95
