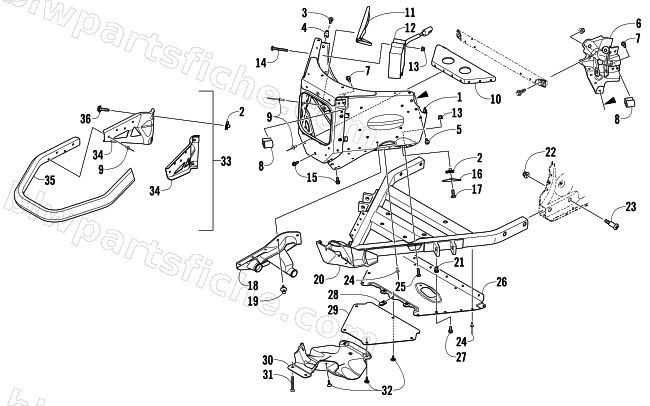

FRONT BUMPER AND FRAME ASSEMBLY
2014 M 8000 SNO PRO LTD ES 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-483 | PANEL,FRT-ASSY 8MM 8000-PTD BLK | 1 | $445.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 1623-683 | SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z&B | 1 | $1.23 | |
| 4 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 5 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 6 | 2707-304 | HOUSING,SHOCK MOUNT-UPR RH-PTD BLK | 1 | $105.95 | |
| 6 | 2707-305 | HOUSING,SHOCK MOUNT-UPR LH-PTD BLK | 1 | $105.95 | |
| 7 | 8413-617 | SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353 | 1 | $1.23 | |
| 8 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 9 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 10 | 2707-496 | KIT,STEERING MTG | 1 | $45.95 | |
| 11 | 0607-991 | BRKT,MTG-STEERING STOP | 1 | $16.49 | |
| 12 | 0630-322 | REGULATOR/RECTIFIER-ELECTRIC START | 1 | $220.95 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 8477-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&BLK | 1 | $1.50 | |
| 15 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 16 | 1707-568 | COVER,SWAY BAR-PTD BLK | 1 | $5.95 | |
| 17 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 18 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 18 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 1707-865 | R/B 3707-130 | 1 | $501.95 | |
| 20 | 1707-864 | FRAME, LOWER-2 STRK-PTD WHT | 1 | $448.95 | |
| 21 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 22 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 23 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 24 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 25 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 26 | 0607-983 | BELLYPAN,CENTER-STAMPED | 1 | $37.95 | |
| 27 | 8476-520 | SCREW,MACH-TSTRH M5X0.8X20 Z&Y | 1 | $1.64 | |
| 28 | 1623-052 | NUT,U | 1 | $0.95 | |
| 29 | 1607-063 | PANEL,ACCESS | 1 | $12.35 | |
| 30 | 6606-614 | PLATE,SKID-CENTER | 1 | $13.73 | |
| 31 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 32 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 33 | 1707-598 | BUMPER,FRT-ORN-ASSY | 1 | $109.95 | |
| 33 | 1707-596 | BUMPER,FRT-BLK-ASSY | 1 | $109.95 | |
| 34 | 1707-576 | BRKT,MTG-FRT BUMPER-RH-PTD BLK | 1 | $17.87 | |
| 34 | 1707-577 | BRKT,MTG-FRT BUMPER-LH-PTD BLK | 1 | $17.87 | |
| 35 | 1707-580 | TUBE,FRT BUMPER-PTD ORN | 1 | $74.95 | |
| 35 | 1707-578 | TUBE,FRT BUMPER-PTD BLK | 1 | $74.95 | |
| 36 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 |
