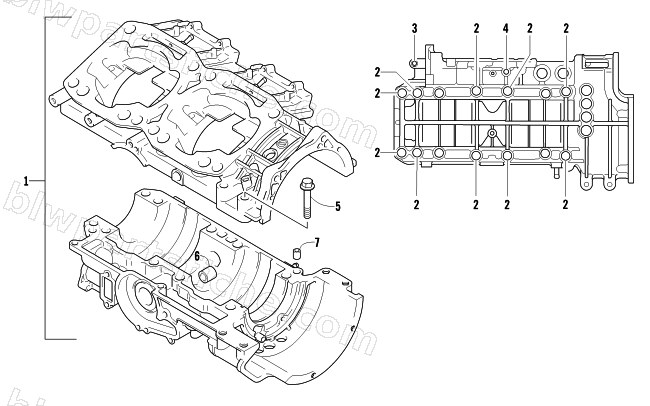

CRANKCASE ASSEMBLY

2014 SNO PRO 500

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3007-612	CRANKCASE ASSY	1	$1,354.95
2	3006-483	BOLT	1	$19.25
3	3007-409	BOLT	1	$3.16
4	3007-461	BOLT	1	$5.09
5	3007-399	BOLT,INLET PIPE	1	$3.85
6	3003-647	BUSHING,OIL PUMP SHAFT,M10	1	$24.77
7	3005-206	PIN (H:10),DOWEL	1	$3.30
