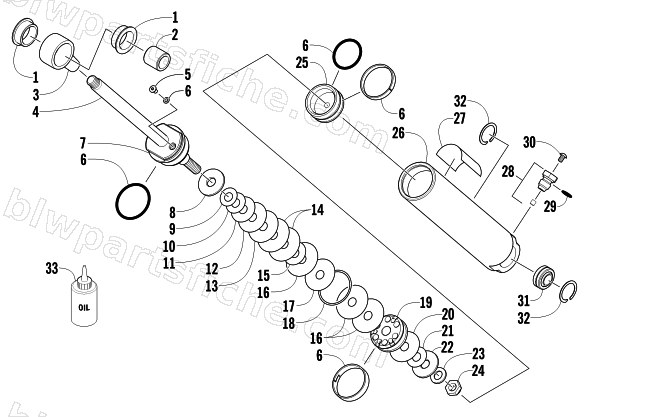

REAR SUSPENSION REAR ARM SHOCK ABSORBER
2014 SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-040 | SHOCK,RR ARM-FOX | 1 | $413.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 4 | 2604-622 | SHAFT,SHOCK-.498 X 7.260 | 1 | $149.95 | |
| 5 | 2604-530 | SCREW,MACH-HSFH 10-24X.375 SS-ASSY | 1 | $3.95 | |
| 6 | 2604-880 | SEAL/BEARING-REBUILD KIT-803-00-108 | 1 | $71.95 | |
| 7 | 2604-627 | BEARING,ENDCAP-.498"X2"OD - W/BLEED-ASSY | 1 | $124.95 | |
| 8 | 2603-466 | WASHER,TOPOUT-1.570ODX.378IDX.093TH | 1 | $17.87 | |
| 9 | 0603-895 | VALVE, SHOCK .800X.004 (3/8 ID) | 1 | $7.95 | |
| 10 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 11 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 12 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 13 | 2604-647 | VALVE,1.425 X .010 (3/8ID) | 1 | $12.95 | |
| 14 | 2604-631 | VALVE,1.600 X .010 (3/8ID) | 1 | $16.95 | |
| 15 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 16 | 3604-577 | VALVE,1.600 X .008 (3/8ID) | 1 | $10.95 | |
| 17 | 3604-611 | VALVE,1.425 OD X .006 X 3/8 ID | 1 | $12.95 | |
| 18 | 2604-692 | VALVE,RING SHIM-1.600ODX1.435IDX.012THK | 1 | $13.95 | |
| 19 | 2604-645 | PISTON,DAMPING-1.834 BORE .055 ORIFACE | 1 | $71.95 | |
| 20 | 2604-632 | VALVE,1.425 X .012 (3/8ID) | 1 | $12.95 | |
| 21 | 0603-893 | VALVE, SHOCK 1.00X.004(040-04-100) | 1 | $7.95 | |
| 22 | 3604-610 | WASHER,TOP OUT-1.40 X .378 X.080 GROUND | 1 | $6.95 | |
| 23 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 24 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 25 | 2604-886 | PISTON,IFP- 1.834" NO BLEED-ASSY | 1 | $128.95 | |
| 26 | 3604-579 | BODY,ALUM-IMP EXT-1.834X9.183 W/GROOVES | 1 | $418.95 | |
| 27 | 2604-889 | DECAL,SHOCK BODY-ZERO PRO-6.250X1.750 | 1 | $38.95 | |
| 28 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 29 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 30 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 31 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 32 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 33 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
