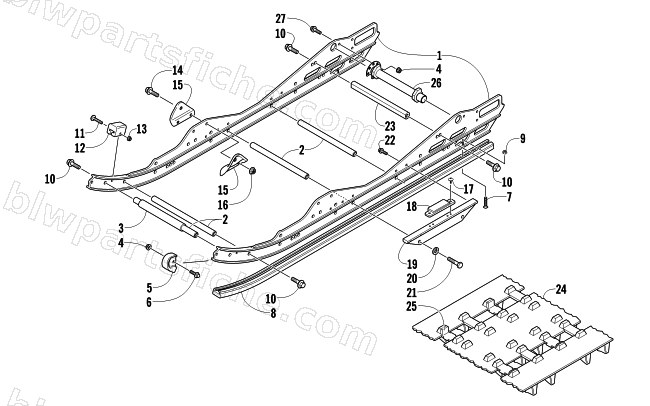

2014 Arctic Cat SNO PRO 500 — SLIDE RAIL AND TRACK ASSEMBLY
2014 SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3604-612 | RAIL,SUSPENSION-FORMED | 1 | $318.95 | |
| 2 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 3 | 3604-573 | SPACER,LIMITER STRAP | 1 | $58.95 | |
| 4 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 5 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 6 | 1623-539 | SCREW,CAP-HFH 1/4-20 X 1 GR 5 Z&Y | 1 | $17.87 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 3604-613 | WEARSTRIP,SLIDE RAIL -46.40" | 1 | $23.95 | |
| 9 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 1623-536 | SCREW,CAP-HFH 3/8-16 X 1.250 W/2353 | 1 | $3.16 | |
| 11 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 12 | 2604-868 | PAD,SHOCK-RUBBER | 1 | $24.77 | |
| 13 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 14 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 15 | 2604-593 | BRACKET,MTG-FRONT ARM-ZINC | 1 | $22.01 | |
| 16 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 17 | 1623-404 | SCREW,MACH-TXSTRH 10-24X.5 GR2 W/2353 | 1 | $2.06 | |
| 18 | 2604-656 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 19 | 3604-487 | BRACE,RAIL-MACH | 1 | $58.95 | |
| 20 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 21 | 1623-535 | SCREW,CAP-HH 3/8-16 X1.75 G5 W/2353 | 1 | $2.47 | |
| 22 | 1623-544 | SCREW,CAP-HFH 1/4-20 X 0.750 W/2353 | 1 | $1.92 | |
| 23 | 2604-259 | CROSSBRACE,REAR ARM | 1 | $34.95 | |
| 24 | 2602-162 | TRACK,COBRA-15X128X1.25 | 1 | $1,029.95 | |
| 25 | 2602-385 | CLIP,GUIDE | 1 | $4.40 | |
| 26 | 2704-051 | BLOCK,COUPLING-PTD BLK | 1 | $84.95 | |
| 27 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 |
