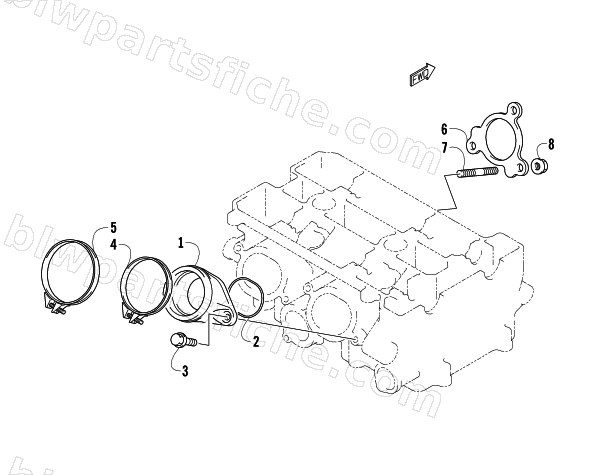

2014 Arctic Cat TZ1 LXR — EXHAUST MANIFOLD GASKET/INTAKE FLANGE ASSEMBLY
2014 TZ1 LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-157 | PIPE ASSY,INTAKE | 1 | $108.95 | |
| 2 | 3007-158 | O-RING,INTAKE PIPE(ID:55.6,DD:2.4) | 1 | $16.49 | |
| 3 | 3423-347 | BOLT,6X16 | 1 | $3.57 | |
| 4 | 3423-726 | CLAMP (CARBURETOR SIDE) | 1 | $16.49 | |
| 5 | 3007-159 | CLAMP,AIR BOX (ID:64) | 1 | $17.87 | |
| 6 | 3007-794 | GASKET,EXH PIPE | 1 | $20.63 | |
| 7 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 8 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 |
