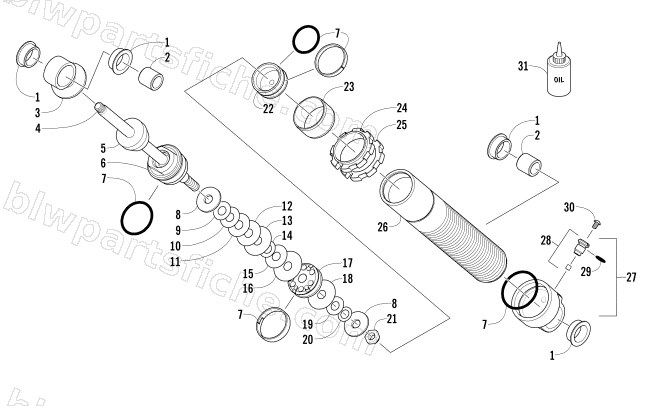

FRONT SUSPENSION SHOCK ABSORBER

2014 XF 7000 137 LXR

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	3703-469	SHOCK, SKI 466.8	1	$137.95
1	3604-738	BUSHING,REAR SHOCK	1	$17.87
2	3604-737	SLEEVE - 20.65 OD X 14.5 ID X 24.2	1	$12.35
3	2603-020	EYELET,SHOCK-SKI-FORGED	1	$73.95
4	3604-762	SHAFT,CHROME-12.66MM X 220.7MM	1	$154.95
5	3604-740	BUMPER,SHOCK - NBR70	1	$16.49
6	4604-126	BEARING, ENDCAP - LONG - W/BLEED ASSY	1	$49.95
7	4604-121	SEAL/BEARING - REBUILD KIT-37MM	1	$58.95
8	3604-789	WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK	1	$3.95
9	3603-105	VALVE,SHOCK-20.32 OD X .25 (9.6 ID)	1	$6.95
10	3603-115	VALVE,SHOCK-22.86 OD X .25 (9.6 ID)	1	$6.95
11	3603-125	VALVE,SHOCK-25.4 OD X .25 (9.6 ID)	1	$6.95
12	3603-145	VALVE,SHOCK-27.94 OD X .25 (9.6 ID)	1	$6.95
13	3603-175	VALVE,SHOCK-31.75 OD X .25 (9.6 ID)	1	$6.95
14	3603-094	VALVE,SHOCK - 17.78 OD X 0.2 X (9.6ID)	1	$6.95
15	3603-124	VALVE,SHOCK-25.4 OD X 0.2 (9.6 ID)	1	$6.95
16	3603-182	VALVE,SHOCK-33.02DIA X .15 (9.60 ID)	1	$6.95
17	3604-840	PISTON, 37 BORE-4.6 ORFICE	1	$37.95
18	3603-174	VALVE,SHOCK-31.75 OD X .2 (9.6 ID)	1	$6.95
19	3603-106	VALVE,SHOCK-20.32 OD X .3 (9.6 ID)	1	$6.95
20	2603-015	VALVE,SHOCK-13.97 OD X 0.5 X (9.6 ID)	1	$6.95
21	3604-739	NUT, HEX - 3/8"-24UNF	1	$4.95
22	3604-772	PISTON.FLOAT-ASSY	1	$35.95
23	3604-773	GUIDE,SPRING-ALUM BODY	1	$32.95
24	2603-014	RING,PRELOAD LOCK-SHOULDERED	1	$53.95
25	3604-779	RING,PRELOAD LOCK	1	$45.95
26	3604-757	BODY,SHOCK-ALUM-37.20 BORE- 252.3MM	1	$122.95
27	2704-257	BODY,CAP-ALUM BODY-ASSY	1	$164.95
28	3604-751	VALVE,PRESSURE-ASSY	1	$124.95
30	3604-750	SCREW.MACH-#8-32 X 5mm-SS	1	$2.47
31	5639-530	SEMI-SYN SHOCK OIL-1 QUART	1	$26.95
