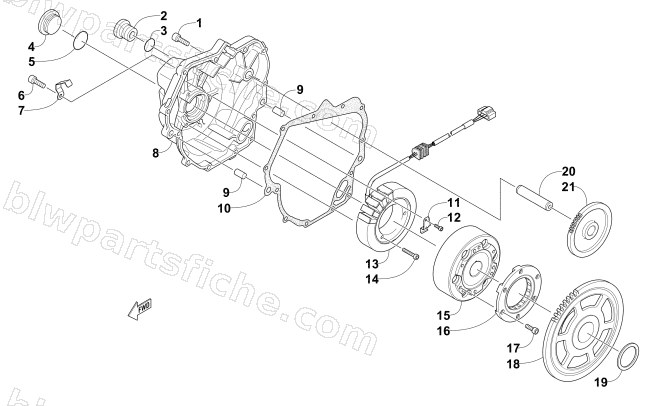

2014 Arctic Cat XF 7000 137 LXR — MAGNETO AND COVER ASSEMBLY
2014 XF 7000 137 LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-345 | SCREW,CAP-HSH | 1 | $12.35 | |
| 2 | 3020-346 | PLUG | 1 | $16.49 | |
| 3 | 3020-347 | O-RING | 1 | $5.37 | |
| 4 | 3020-348 | PLUG | 1 | $30.95 | |
| 5 | 3020-349 | O-RING | 1 | $5.37 | |
| 6 | 3020-314 | SCREW,CAP-HSH | 1 | $4.26 | |
| 7 | 3020-350 | BRACKET,RETAINING | 1 | $12.35 | |
| 8 | 3020-351 | COVER,MAGNETO | 1 | $294.95 | |
| 9 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 10 | 3020-352 | GASKET,MAGNETO COVER | 1 | $26.95 | |
| 11 | 3020-353 | BRACKET,RETAINING | 1 | $5.37 | |
| 12 | 3020-354 | SCREW,CAP-HSH | 1 | $3.85 | |
| 13 | 3020-355 | STATOR | 1 | $663.95 | |
| 14 | 3020-356 | SCREW,CAP-HSH | 1 | $12.35 | |
| 15 | 3020-357 | ROTOR/FLYWHEEL | 1 | $838.95 | |
| 16 | 3020-358 | CLUTCH,STARTER-ONE WAY | 1 | $354.95 | |
| 17 | 3020-359 | SCREW,CAP-HSH | 1 | $2.75 | |
| 18 | 3020-360 | GEAR,CLUTCH-STARTER | 1 | $184.95 | |
| 19 | 3020-361 | WASHER | 1 | $4.26 | |
| 20 | 3020-362 | SHAFT,IDLER GEAR | 1 | $8.21 | |
| 21 | 3020-363 | GEAR, IDLER-STARTER | 1 | $128.95 |
