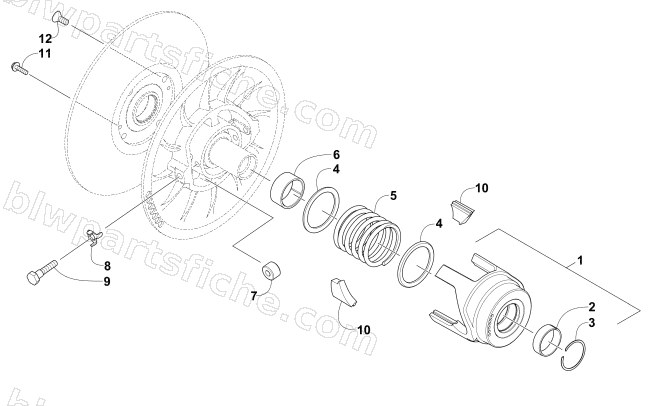

2014 Arctic Cat XF 7000 141 CROSS-TOUR — DRIVEN CLUTCH
2014 XF 7000 141 CROSS-TOUR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-339 | CLUTCH,DRIVEN-42/36 202-284 BLUE-4 STRK | 1 | $735.95 | |
| 1 | 0748-773 | CAM,DRIVEN-42/36 MACH | 1 | $136.95 | |
| 2 | 0648-831 | BEARING,INNER-MACH | 1 | $33.95 | |
| 3 | 0648-811 | RING,SNAP-43mm | 1 | $2.06 | |
| 4 | 0648-810 | SEAT, SPRING-DRIVEN | 1 | $17.87 | |
| 5 | 0648-813 | SPRING,DRIVEN-202-284 BLUE | 1 | $20.63 | |
| 6 | 0648-827 | SPACER,DRIVEN | 1 | $12.35 | |
| 7 | 0648-824 | ROLLER,DRIVEN-TORLON | 1 | $27.95 | |
| 8 | 0648-800 | WASHER,TAB LOCK-10MM | 1 | $1.23 | |
| 9 | 0648-799 | SCREW,CAM ROLLER-M10X1.5-40 CL 8.8 | 1 | $4.40 | |
| 10 | 0648-825 | CAM,BACK-4 STRK | 1 | $3.99 | |
| 11 | 0623-684 | SCREW,SELF TAP-HWH #12X1-HILO-Z&Y | 1 | $0.95 | |
| 12 | 2623-050 | SCREW,MACH-TSFH-M8X1.25X25 10.9-RIE SIL | 1 | $8.21 |
