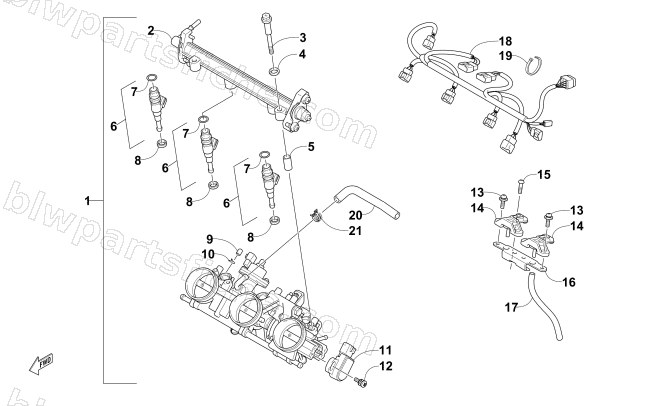

THROTTLE BODY ASSEMBLY
2014 XF 7000 141 CROSS-TOUR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-327 | BODY,THROTTLE-ASSEMBLY | 1 | $2,474.95 | |
| 2 | 3020-328 | RAIL,FUEL | 1 | $323.95 | |
| 3 | 3020-329 | SCREW,SHOULDER | 1 | $17.87 | |
| 4 | 3020-330 | WASHER | 1 | $4.26 | |
| 5 | 3020-331 | SPACER | 1 | $8.21 | |
| 6 | 3020-332 | INJECTOR | 1 | $283.95 | |
| 8 | 3020-334 | GROMMET | 1 | $12.35 | |
| 9 | 3020-340 | CAP | 1 | $6.75 | |
| 10 | 3020-341 | CLAMP,HOSE | 1 | $4.68 | |
| 11 | 3020-342 | THROTTLE SENSOR ASSY | 1 | $156.95 | |
| 12 | 3020-343 | SCREW,MACHINE-PPH | 1 | $6.47 | |
| 13 | 3020-336 | SCREW,MACHINE-PPH | 1 | $4.26 | |
| 14 | 3020-337 | SENSOR, PRESSURE | 1 | $191.95 | |
| 17 | 3020-338 | HOSE,VENT | 1 | $12.35 | |
| 18 | 3020-344 | HARNESS,EXTENSION-ENGINE | 1 | $200.95 | |
| 19 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 19 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 20 | 0610-962 | HOSE,ISC | 1 | $13.73 | |
| 21 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 |
