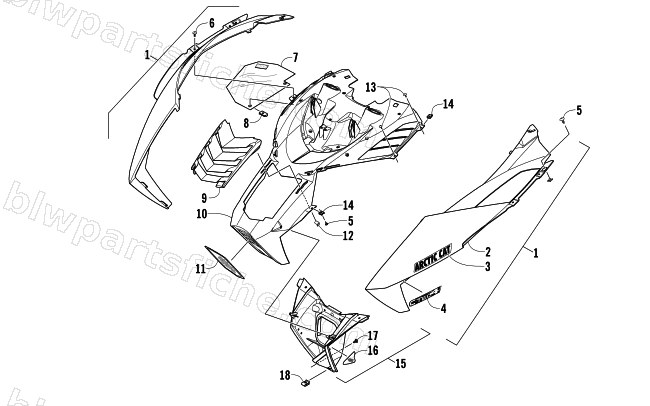

2014 Arctic Cat XF 7000 141 SNO PRO CROSS-COUNTRY — HOOD ASSEMBLY
2014 XF 7000 141 SNO PRO CROSS-COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-962 | HOOD,W/DECALS-RH-WHT (XF 7000 CC) | 1 | $154.95 | |
| 1 | 3718-963 | HOOD,W/DECALS-LH-WHT (XF 7000 CC) | 1 | $154.95 | |
| 2 | 6606-324 | HOOD,MAIN-RH-WHT | 1 | $156.95 | |
| 2 | 6606-325 | HOOD,MAIN-LH-WHT | 1 | $156.95 | |
| 3 | 0621-732 | DECAL,HOOD-"ARCTIC CAT"-BLK/WHT | 1 | $13.73 | |
| 4 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 5 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 6 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 7 | 1712-899 | SHIELD,HEAT BARRIER | 1 | $89.95 | |
| 8 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 9 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 10 | 6606-510 | PLENUM,AIR INTAKE-UPPER-ROUTED | 1 | $228.95 | |
| 11 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 12 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 15 | 5706-992 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(7) | 1 | $77.95 | |
| 16 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 17 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 18 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 |
