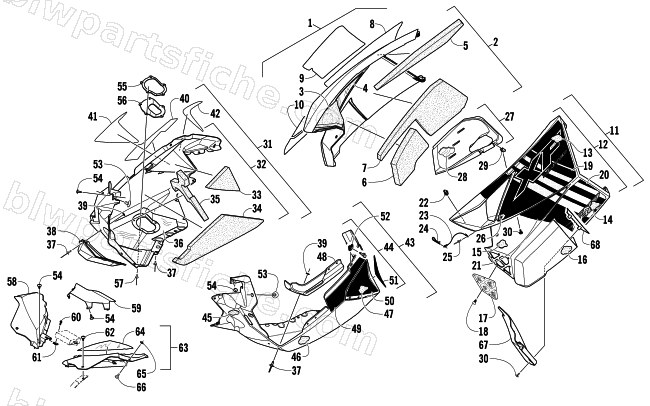

2014 Arctic Cat XF 8000 137 SNO PRO LTD — SKID PLATE AND SIDE PANEL ASSEMBLY
2014 XF 8000 137 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-040 | PANEL,SIDE-RH-ORN W/DECAL(XF LTD) | 1 | $370.95 | |
| 1 | 4718-030 | PANEL,SIDE-RH W/DECALS(XF8 LTD BLK/WHT) | 1 | $370.95 | |
| 2 | 4718-002 | PANEL,SIDE-RH W/FOAM-ORN/CLR (2 STRK) | 1 | $267.95 | |
| 2 | 3718-658 | PANEL,SIDE-RH W/FOAM-BLK/CLR (2 STRK) | 1 | $284.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 0617-634 | FOAM,LWR SIDE PANEL-REAR-RH | 1 | $39.95 | |
| 8 | 0621-826 | DECAL,SIDE PANEL-UPPER-RH (XF LTD ORN) | 1 | $152.95 | |
| 8 | 0621-860 | DECAL,SIDE PANEL-UPPER-RH (XF LTD WHT) | 1 | $66.95 | |
| 9 | 0621-840 | DECAL,SIDE PANEL-LWR-RH (LTD ORN) | 1 | $27.95 | |
| 9 | 0621-874 | DECAL,SIDE PANEL-LWR-RH (LTD WHT) | 1 | $27.95 | |
| 10 | 0621-838 | DECAL,SIDE PANEL-MID-RH (LTD ORN) | 1 | $6.75 | |
| 10 | 0621-872 | DECAL,SIDE PANEL-MID-RH (LTD WHT) | 1 | $6.75 | |
| 11 | 4718-041 | PANEL,SIDE-LH-ORN W/DECAL(XF LTD) | 1 | $359.95 | |
| 11 | 4718-031 | PANEL,SIDE-LH W/DECALS(XF8 LTD BLK/WHT) | 1 | $359.95 | |
| 12 | 4718-003 | PANEL,SIDE-LH W/FOAM-ORN/CLR | 1 | $267.95 | |
| 12 | 4718-109 | PANEL,SIDE-LH-W/FOAM-BLK/CLR | 1 | $267.95 | |
| 13 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 14 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 15 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 16 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 17 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 18 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 19 | 0621-827 | DECAL,SIDE PANEL-UPPER-LH (XF LTD ORN) | 1 | $152.95 | |
| 19 | 0621-861 | DECAL,SIDE PANEL-UPPER-LH (XF LTD WHT) | 1 | $66.95 | |
| 20 | 0621-841 | DECAL,SIDE PANEL-LWR-LH (LTD ORN) | 1 | $27.95 | |
| 20 | 0621-875 | DECAL,SIDE PANEL-LWR-LH (LTD WHT) | 1 | $27.95 | |
| 21 | 0621-839 | DECAL,SIDE PANEL-MID-LH (LTD ORN) | 1 | $6.75 | |
| 21 | 0621-873 | DECAL,SIDE PANEL-MID-LH (LTD WHT) | 1 | $6.75 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 24 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 25 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 26 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 27 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 28 | 6606-694 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $3.71 | |
| 29 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 30 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 31 | 4718-008 | PLATE,SKID-ORN W/CLR-RH W/DECAL | 1 | $374.95 | |
| 31 | 4718-032 | PLATE,SKID-BLK/CLR-RH W/DECAL | 1 | $374.95 | |
| 32 | 4718-006 | PLATE,SKID-ORN W/CLR-RH W/FOAM | 1 | $374.95 | |
| 32 | 3718-744 | PLATE,SKID-BLK/CLR-RH W/FOAM | 1 | $374.95 | |
| 33 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 34 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 35 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 36 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 39 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 40 | 0621-842 | DECAL,SKID PLATE-UPPER-RH (LTD ORN) | 1 | $6.75 | |
| 40 | 0621-876 | DECAL,SKID PLATE-UPPER-RH (WHT LTD) | 1 | $10.97 | |
| 41 | 0621-844 | DECAL,SKID PLATE-LOWER-RH (LTD ORN) | 1 | $16.49 | |
| 41 | 0621-878 | DECAL,SKID PLATE-LWR-RH (WHT LTD) | 1 | $16.49 | |
| 42 | 0621-846 | DECAL,SKID PLATE-REAR-RH (LTD ORN) | 1 | $5.09 | |
| 42 | 0621-880 | DECAL,SKID PLATE-REAR-RH (WHT LTD) | 1 | $5.09 | |
| 43 | 4718-009 | PLATE,SKID-ORN W/CLR-LH W/DECAL | 1 | $267.95 | |
| 43 | 4718-033 | PLATE,SKID-BLK/CLR-LH W/DECAL | 1 | $267.95 | |
| 44 | 4718-007 | PLATE,SKID-ORN W/CLR-LH W/FOAM | 1 | $267.95 | |
| 44 | 3718-745 | PLATE,SKID-BLK/CLR-LH W/FOAM | 1 | $244.95 | |
| 45 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 46 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 47 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 48 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 49 | 0621-843 | DECAL,SKID PLATE-UPPER-LH (LTD ORN) | 1 | $6.75 | |
| 49 | 0621-877 | DECAL,SKID PLATE-UPPER-LH (WHT LTD) | 1 | $32.95 | |
| 50 | 0621-845 | DECAL,SKID PLATE-LOWER-LH (LTD ORN) | 1 | $16.49 | |
| 50 | 0621-879 | DECAL,SKID PLATE-LWR-LH (WHT LTD) | 1 | $38.95 | |
| 51 | 0621-847 | DECAL,SKID PLATE-REAR-LH (LTD ORN) | 1 | $5.09 | |
| 51 | 0621-881 | DECAL,SKID PLATE-REAR-LH (WHT LTD) | 1 | $5.09 | |
| 52 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 53 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 54 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 55 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 56 | 2612-795 | SEAL,EXHAUT OUTLET-2 STRK | 1 | $17.87 | |
| 57 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 58 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 59 | 6606-295 | SHIELD,HEAT-ECU | 1 | $24.95 | |
| 60 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 61 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 62 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 63 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 64 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 65 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 66 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 | |
| 67 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 68 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 |
