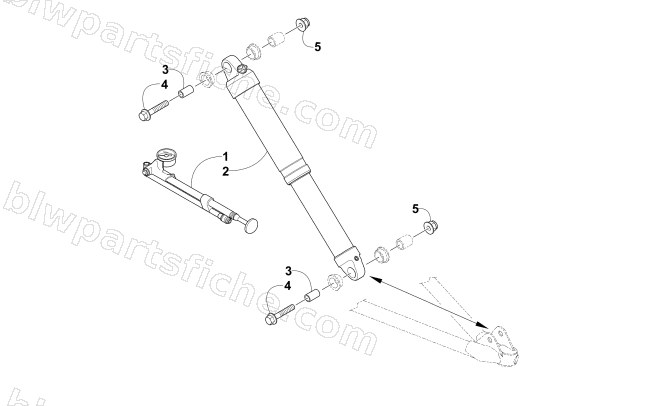

2014 Arctic Cat XF 8000 141 HIGH COUNTRY SNO PRO LTD — FRONT SHOCK ABSORBER ASSEMBLY
2014 XF 8000 141 HIGH COUNTRY SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-614 | PUMP,FOX HP W/BLEED-150 PSI (FLOAT2) | 1 | $69.95 | |
| 2 | 3703-255 | SHOCK,SKI-FLOAT 3-18.68" | 1 | $643.95 | |
| 3 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 4 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 5 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
