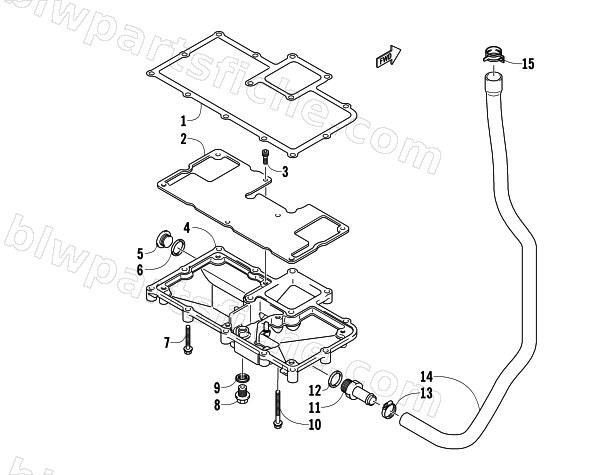

2014 Arctic Cat XF 9000 137 SNO PRO LTD — OIL PAN ASSEMBLY
2014 XF 9000 137 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-099 | GASKET,OIL PAN | 1 | $30.95 | |
| 2 | 3007-102 | PLATE,OIL PAN | 1 | $30.95 | |
| 3 | 3007-092 | BOLT,OIL SEP PLATE (6X12) | 1 | $2.95 | |
| 4 | 3007-100 | PAN,OIL | 1 | $230.95 | |
| 5 | 3007-501 | PLUG,OIL GALLERY(M18) | 1 | $15.11 | |
| 6 | 3402-556 | GASKET, OIL LAMP SWITCH | 1 | $12.35 | |
| 7 | 3007-504 | BOLT,OIL PAN | 1 | $2.75 | |
| 8 | 3007-101 | PLUG,OIL DRAIN (12X16) | 1 | $17.87 | |
| 9 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 10 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 11 | 3007-093 | UNION,WATER BYPASS HOSE | 1 | $30.95 | |
| 12 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 13 | 3007-856 | CLAMP,BREATHER HOSE | 1 | $19.25 | |
| 14 | 3007-507 | HOSE,BREATHER TANK OIL RETURN | 1 | $66.95 | |
| 15 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 |
