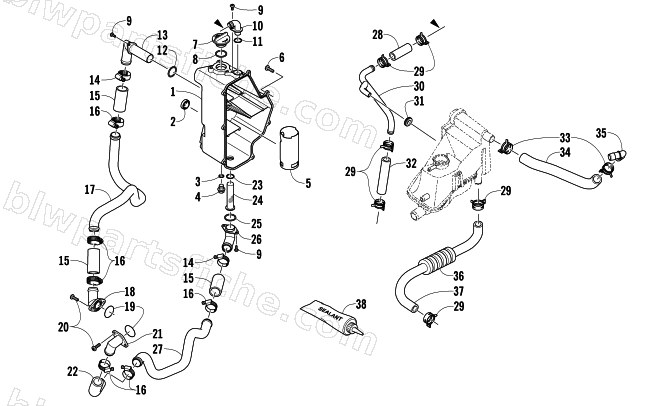

OIL TANK ASSEMBLY
2014 XF 9000 137 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-963 | TANK,OIL-4 STRK-MACH | 1 | $244.95 | |
| 2 | 2670-257 | GLASS,SIGHT | 1 | $13.73 | |
| 3 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 4 | 2602-099 | PLUG,FILL-12 MM | 1 | $13.73 | |
| 5 | 2670-219 | TUBE,OIL TANK | 1 | $38.95 | |
| 6 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 7 | 2670-224 | CAP,OIL TANK-W/ O-RING | 1 | $22.01 | |
| 8 | 2670-135 | O-RING,OIL CAP | 1 | $2.19 | |
| 9 | 1623-969 | SCREW,MAG FORM-TXPH-M6X2.0X12 Z&C | 1 | $1.64 | |
| 10 | 2670-218 | NIPPLE,OIL TANK-VENT | 1 | $19.25 | |
| 11 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 12 | 2670-406 | O-RING,OIL TANK-0.984 ID X 0.139 THK | 1 | $0.95 | |
| 13 | 2670-221 | NIPPLE,OIL TANK-OIL RETURN | 1 | $38.95 | |
| 14 | 1623-981 | CLAMP,HOSE-25/40 (NORMA) | 1 | $2.88 | |
| 15 | 0610-840 | HOSE,25.4mm DIA X 75mm-SAE J30 | 1 | $12.35 | |
| 16 | 1623-230 | CLAMP,SCREW-#016 | 1 | $12.35 | |
| 17 | 2670-226 | TUBE,OIL RETURN-FORMED | 1 | $30.95 | |
| 18 | 2670-170 | FITTING,OIL RETURN-ENGINE | 1 | $78.95 | |
| 19 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 20 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 21 | 2670-169 | FITTING,OIL SUPPLY-ENGINE | 1 | $78.95 | |
| 22 | 0610-839 | HOSE, OIL FEED | 1 | $17.87 | |
| 23 | 0673-459 | O-RING,3/4ID X 1/16 (-018) | 1 | $1.23 | |
| 24 | 2670-222 | SCREEN,OIL TANK | 1 | $19.25 | |
| 25 | 2670-290 | O-RING,OIL TANK(2-120) | 1 | $0.95 | |
| 26 | 2670-220 | NIPPLE,OIL TANK-OIL FEED | 1 | $37.95 | |
| 27 | 2670-227 | TUBE,OIL FEED-FORMED | 1 | $24.77 | |
| 28 | 0610-869 | HOSE,BREATHER-OIL TANK-UPR | 1 | $3.57 | |
| 29 | 1623-288 | CLAMP,HOSE-SPRING (12W X 25) | 1 | $3.57 | |
| 30 | 2670-267 | BREATHER,OIL TANK-W/CHECK VALVE | 1 | $126.95 | |
| 31 | 1623-958 | GROMMET,RUBBER-.5"ID X 1.00" OD X .09 GR | 1 | $3.44 | |
| 32 | 0610-844 | HOSE,BREATHER-OIL TANK | 1 | $16.49 | |
| 33 | 1623-292 | CLAMP,HOSE-SPRING (12W X 29) | 1 | $3.99 | |
| 34 | 0610-880 | HOSE,BREATHER-VENT | 1 | $27.95 | |
| 35 | 2670-324 | FITTING,ELBOW-PLASTIC | 1 | $5.65 | |
| 36 | 1619-486 | CONDUIT,FLEXIBLE-.875ID-5FT | 1 | $17.95 | |
| 37 | 0610-843 | HOSE,BREATHER-SEPARATOR | 1 | $37.95 | |
| 38 | 1048-063 | LOCTITE,5699-GASKET MAKER(70ML) | 1 | $69.95 |
