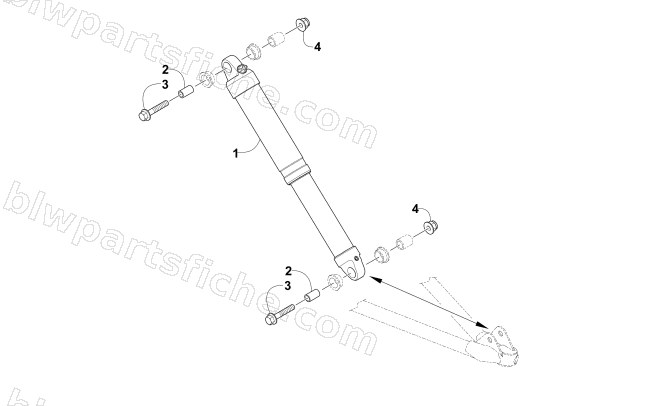

SHOCK ABSORBER ASSEMBLY
2014 XF 9000 141 CROSS-TOUR
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3703-255 |
SHOCK,SKI-FLOAT 3-18.68" |
1 |
$643.95 |
|
| 2 |
3604-109 |
SLEEVE,SHOCK EYELET-10mm ID |
1 |
$4.40 |
|
| 3 |
8408-050 |
SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y |
1 |
$2.75 |
|
| 4 |
8427-002 |
NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y |
1 |
$0.95 |
|
