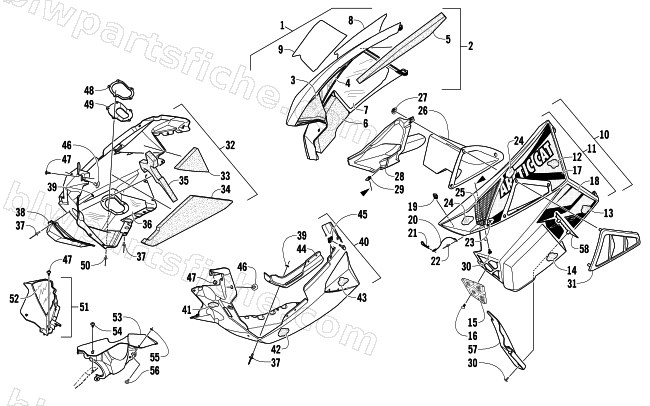

2014 Arctic Cat XF 9000 141 CROSS-TOUR — SKID PLATE AND SIDE PANEL ASSEMBLY
2014 XF 9000 141 CROSS-TOUR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-902 | PANEL,SIDE-RH BLK-W/DECAL (XF 9000 BLK) | 1 | $316.95 | |
| 1 | 3718-942 | PANEL,SIDE-RH BLK/ORN W/DECALS(XF Z1 CT) | 1 | $316.95 | |
| 2 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 0621-636 | DECAL,SIDE PANEL-UPR RH (LXR BLK) | 1 | $43.95 | |
| 8 | 0621-716 | DECAL,SIDE PANEL-UPPER-RH (XF CT ORN) | 1 | $37.95 | |
| 9 | 0621-646 | DECAL,SIDE PANEL-LWR RH (XF LXR BLK) | 1 | $43.95 | |
| 9 | 0621-720 | DECAL,SIDE PANEL-LWR RH (XF CT ORN) | 1 | $43.95 | |
| 10 | 3718-903 | PANEL,SIDE-LH BLK-W/DECAL (XF 9000 BLK) | 1 | $335.95 | |
| 10 | 3718-943 | PANEL,SIDE-RH BLK/ORN W/DECALS(XF TRB CT | 1 | $316.95 | |
| 11 | 4718-105 | PANEL,SIDE-LH-W/FOAM-BLK (TURBO) | 1 | $259.95 | |
| 12 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 13 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 14 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 15 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 16 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 17 | 0621-167 | DECAL,SIDE PANEL-UPR LH (TRB LXR BLK) | 1 | $74.95 | |
| 17 | 0621-719 | DECAL,SIDE PANEL-UPPER-LH (XF TRB ORN) | 1 | $88.95 | |
| 18 | 0621-647 | DECAL,SIDE PANEL-LWR LH (XF LXR BLK) | 1 | $43.95 | |
| 18 | 0621-721 | DECAL,SIDE PANEL-LWR LH (XF CT ORN) | 1 | $43.95 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 21 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 22 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 23 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 24 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 25 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 26 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 27 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 28 | 2602-457 | DUCT,BELT COOLING-4 STRK | 1 | $46.95 | |
| 29 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 30 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 31 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 32 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 33 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 34 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 35 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 36 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 39 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 40 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 41 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 42 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 43 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 44 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 45 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 46 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 47 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 48 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 49 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 50 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 51 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 52 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 53 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 54 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 55 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 56 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 | |
| 57 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 58 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 |
