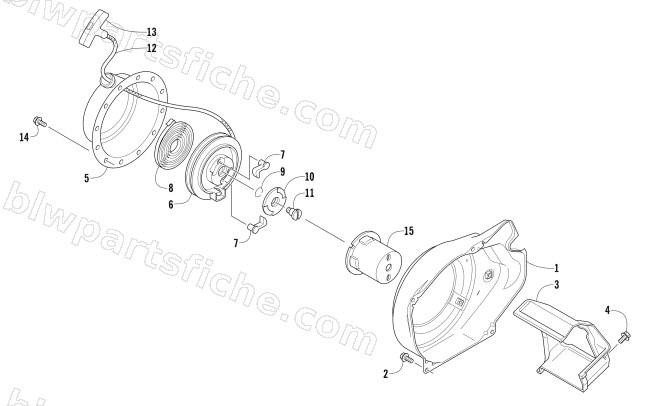

2014 Arctic Cat ZR 120 — RECOIL STARTER AND AIR SHROUD ASSEMBLY
2014 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-051 | COWLING, VENTILATION | 1 | $69.95 | |
| 2 | 3020-120 | SCREW, CAP | 1 | $3.16 | |
| 3 | 3020-052 | SHROUD, AIR | 1 | $33.95 | |
| 4 | 3020-121 | SCREW, CAP | 1 | $3.16 | |
| 5 | 3020-065 | HOUSING, RECOIL | 1 | $79.95 | |
| 6 | 3020-067 | REEL | 1 | $45.95 | |
| 7 | 3020-071 | PAWL, DRIVE | 1 | $8.21 | |
| 8 | 3020-066 | SPRING, SPIRAL | 1 | $37.95 | |
| 9 | 3020-068 | SPRING, FRICTION | 1 | $2.61 | |
| 10 | 3020-069 | PLATE, DRIVE | 1 | $12.35 | |
| 11 | 3020-074 | SCREW, SHOULDER | 1 | $13.73 | |
| 12 | 3020-072 | ROPE, STARTER | 1 | $33.95 | |
| 13 | 3020-073 | GRIP, ROPE | 1 | $20.63 | |
| 14 | 3020-119 | SCREW, CAP | 1 | $3.16 | |
| 15 | 3020-070 | PULLEY, STARTER | 1 | $20.63 |
