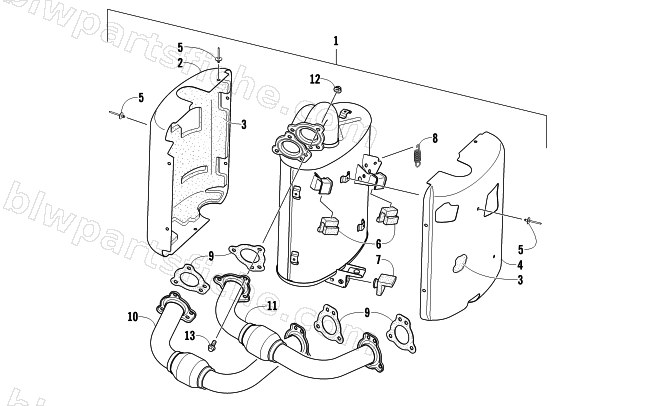

EXHAUST ASSEMBLY
2014 ZR 5000 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-762 | RESONATOR,EXHAUST-NA-ASSY | 1 | $1,093.95 | |
| 2 | 2612-622 | SHIELD,HEAT-MUFFLER-RH | 1 | $121.95 | |
| 3 | 2612-648 | PACKING,RESONATOR | 1 | $17.87 | |
| 4 | 2612-623 | SHIELD,HEAT-MUFFLER-LH | 1 | $121.95 | |
| 5 | 1623-799 | RIVET,BLIND-LF SD61BSLF ZINC | 1 | $0.95 | |
| 6 | 2612-893 | GROMMET,RUBBER-UPR | 1 | $17.87 | |
| 7 | 2612-706 | GROMMET,RUBBER-LOWER | 1 | $5.65 | |
| 8 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 9 | 2612-663 | GASKET, EXHAUST | 1 | $26.95 | |
| 10 | 1712-693 | PIPE,EXHAUST-MAG WELD'T | 1 | $275.95 | |
| 11 | 1712-703 | PIPE,EXHAUST-PTO WELD'T | 1 | $267.95 | |
| 12 | 1623-912 | NUT,HEX FLG-TOP LOCK M8X1.25 CL8 HI TEMP | 1 | $1.64 | |
| 13 | 1623-918 | SCREW,CAP-HFH M8X1.25X20 CL8.8 HI TEMP | 1 | $1.64 |
