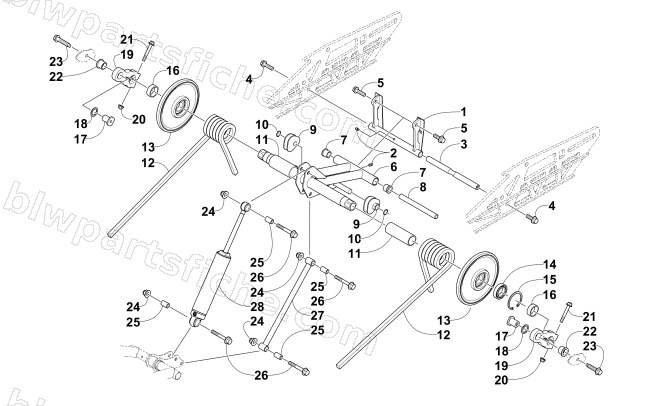

2014 Arctic Cat ZR 6000 EL TIGRE ES — REAR SUSPENSION REAR ARM ASSEMBLY
2014 ZR 6000 EL TIGRE ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-389 | ARM,REAR-BLK FABR | 1 | $66.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-673 | AXLE,XBRC-HC-16.51X222.25 (M8X1.25) | 1 | $88.95 | |
| 4 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 5 | 8413-041 | SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353 | 1 | $3.16 | |
| 6 | 2704-002 | ARM,IDLER-397 HEX-FABR | 1 | $224.95 | |
| 7 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 8 | 3604-276 | AXLE,IDLER-LWR M10 X 173.15 | 1 | $34.95 | |
| 9 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 9 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 10 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 11 | 3604-288 | SLEEVE,SPRING-108mm | 1 | $3.44 | |
| 12 | 1704-576 | SPRING,SUSP-18.5LB 90 DEG-PTD RH | 1 | $106.95 | |
| 12 | 1704-577 | SPRING,SUSP-18.5LB 90 DEG-PTD LH | 1 | $106.95 | |
| 13 | 3604-264 | WHEEL,IDLER-7.12(NO INSERT/30mm BEARING) | 1 | $53.95 | |
| 14 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 15 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 16 | 3604-674 | SPACER,OFFSET ARM-HEX SHAFT-12.81mm | 1 | $1.37 | |
| 17 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 18 | 3604-930 | WASHER,OFF SET ARM-.035"THK | 1 | $0.95 | |
| 19 | 2704-477 | OFFSET ARM, IDLER-HEX 18.15- ASSY | 1 | $53.95 | |
| 20 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 22 | 3604-713 | BUSHING,GARLOCK-12FDU12 | 1 | $3.85 | |
| 23 | 2623-002 | SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353 | 1 | $3.71 | |
| 24 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 25 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 26 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 27 | 1704-686 | LINK,REAR SHOCK-MACH | 1 | $44.95 | |
| 28 | 2704-685 | SHOCK, REAR ARM-2" 356.1 | 1 | $164.95 |
