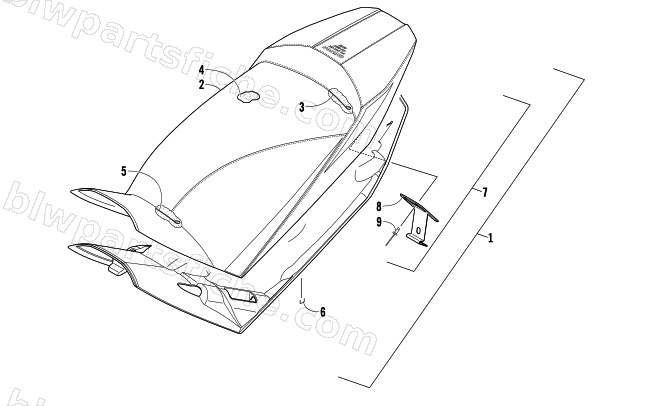

2014 Arctic Cat ZR 6000 EL TIGRE ES — SEAT ASSEMBLY
2014 ZR 6000 EL TIGRE ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-682 | SEAT,ASSY-ET | 1 | $713.95 | |
| 2 | 5706-683 | COVER,SEAT-ET | 1 | $382.95 | |
| 3 | 3606-369 | WIRE,SEAT-BENT | 1 | $4.26 | |
| 4 | 0717-215 | FOAM,SEAT (64-70 ILD).48R@4.5 | 1 | $145.95 | |
| 5 | 6606-461 | WIRE,SEAT-3.048 DIA X 279.4 mm | 1 | $1.92 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 5706-240 | BASE,SEAT-W/SEAT LATCH HOOK | 1 | $65.95 | |
| 8 | 6606-452 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 9 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 |
