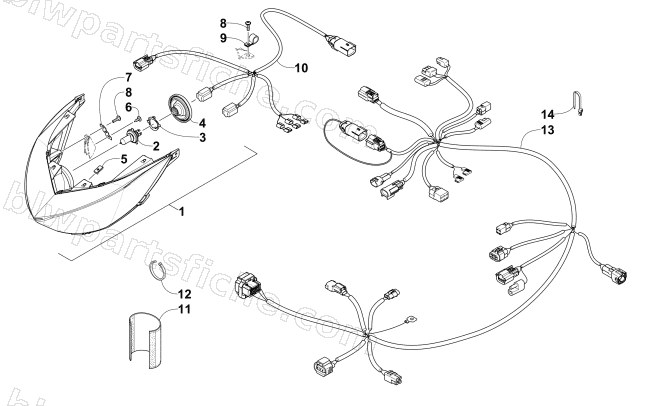

2014 Arctic Cat ZR 6000 SNO PRO R CROSS COUNTRY — HEADLIGHT AND WIRING ASSEMBLY
2014 ZR 6000 SNO PRO R CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-899 | R/B 0609-967 | 1 | $417.95 | |
| 2 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 3 | 0409-097 | RETAINER,H/L HS-1 ECE | 1 | $34.95 | |
| 4 | 0609-919 | BOOT,BULB | 1 | $29.95 | |
| 5 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 6 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 7 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 7 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 8 | 1623-609 | SCREW,PT THREAD FORMING-K60-2.69X22MM | 1 | $3.16 | |
| 9 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 10 | 1686-733 | HARNESS,HOOD-CROSS COUNTRY | 1 | $126.95 | |
| 11 | 5706-138 | WRAP,WIRE HARNESS | 1 | $11.29 | |
| 12 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 13 | 1686-732 | HARNESS,MAIN-RACE | 1 | $606.95 | |
| 14 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
