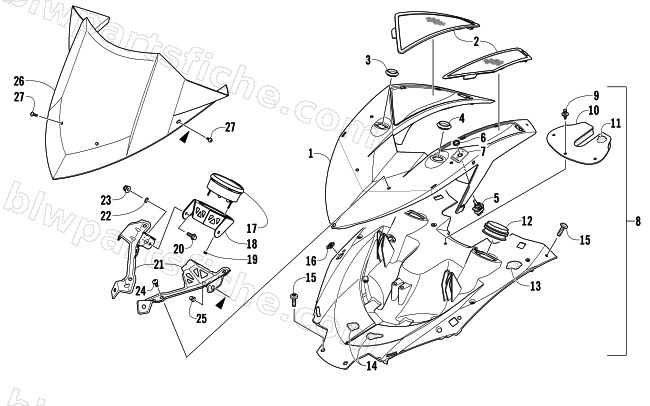

2014 Arctic Cat ZR 6000 SNO PRO R CROSS COUNTRY — POD AND WINDSHIELD ASSEMBLY
2014 ZR 6000 SNO PRO R CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-385 | COWL,HEADLIGHT-BLK-ROUTED CC | 1 | $145.95 | |
| 2 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 2 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 3 | 1623-970 | PLUG,BUTTON W/ RECESSED HEAD-7/8"DIA | 1 | $1.92 | |
| 4 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 5 | 0609-920 | SWITCH,TOGGLE-HEADLIGHT | 1 | $16.49 | |
| 6 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 7 | 9611-054 | DECAL,HEADLIGHT | 1 | $15.11 | |
| 8 | 5706-626 | PLENUM,AIR INTAKE-W/FOAM | 1 | $184.95 | |
| 9 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 10 | 5706-633 | CLOSE OFF-W/FOAM | 1 | $20.63 | |
| 12 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 13 | 0617-694 | FOAM,AIR INTAKE-MIDDLE | 1 | $29.95 | |
| 14 | 0617-692 | FOAM,AIR INTAKE-RH | 1 | $37.95 | |
| 14 | 0617-693 | FOAM,AIR INTAKE-LH | 1 | $38.95 | |
| 15 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 16 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 17 | 0620-379 | SPEEDO,AC 600 CC R CALIB-STANDARD | 1 | $524.95 | |
| 18 | 6606-418 | BRKT,GAUGE-CENTER (STD) | 1 | $65.95 | |
| 19 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 20 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 21 | 6606-130 | BRKT,GAUGE-RH | 1 | $20.63 | |
| 21 | 6606-131 | BRKT,GAUGE-LH | 1 | $11.79 | |
| 22 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 25 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 26 | 6606-624 | WINDSHIELD,MID-TEAM ARC GRN | 1 | $150.95 | |
| 26 | 6606-513 | WINDSHIELD,TALL-SMOKE (XC) | 1 | $172.95 | |
| 27 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
