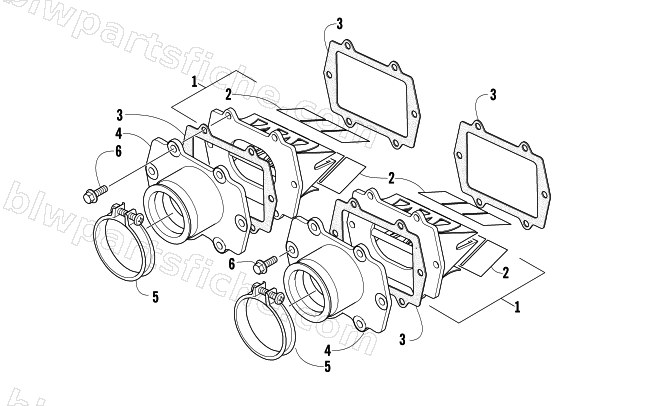

2014 Arctic Cat ZR 6000 SNO PRO R CROSS COUNTRY — REED VALVE ASSEMBLY
2014 ZR 6000 SNO PRO R CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2900-068 | VALVE,REEDS-ASSY-V-FORCE | 1 | $275.95 | |
| 2 | 2900-016 | PETAL,V-FORCE REEDS | 1 | $136.95 | |
| 3 | 2900-017 | GASKET,V-FORCE REEDS | 1 | $6.75 | |
| 4 | 2900-051 | PIPE,INTAKE-MACH | 1 | $145.95 | |
| 5 | 3402-455 | CLAMP, DUCT REAR | 1 | $13.73 | |
| 6 | 3007-380 | BOLT | 1 | $3.16 |
