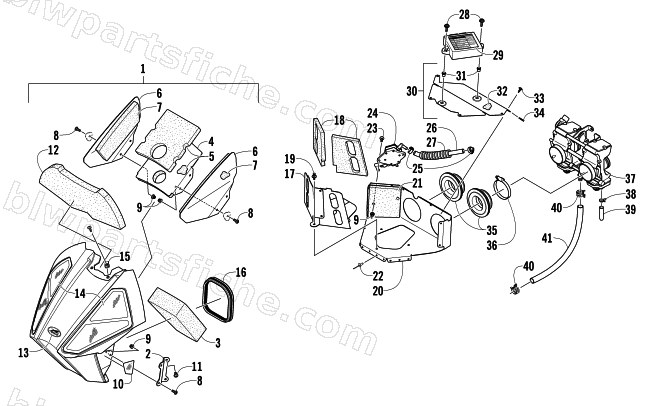

2014 Arctic Cat ZR 6000 SNO PRO R — AIR SILENCER, CARBURETOR, AND FUEL PUMP ASSEMBLY
2014 ZR 6000 SNO PRO R
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-063 | SILENCER,AIR-FRT BUMPER-W/FOAM ASSY | 1 | $470.95 | |
| 2 | 1770-008 | BRKT,MTG-AIR SILENCER-RH PTD BLK | 1 | $17.87 | |
| 2 | 1770-009 | BRKT,MTG-AIR SILENCER-LH PTD BLK | 1 | $20.63 | |
| 3 | 0617-677 | FOAM,AIR SILENCER-FRT | 1 | $24.77 | |
| 4 | 2670-304 | BAFFLE,INTAKE-AIR SILENCER | 1 | $16.49 | |
| 5 | 0617-695 | FOAM,BAFFLE | 1 | $13.73 | |
| 6 | 2670-246 | PLATE,INTAKE-AIR SILENCER | 1 | $19.25 | |
| 7 | 0617-690 | FOAM,INTAKE PLATE-RH | 1 | $8.21 | |
| 7 | 0617-691 | FOAM,INTAKE PLATE-LH | 1 | $8.21 | |
| 8 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 9611-390 | DECAL,REFLECTOR-AMBER RH | 1 | $22.01 | |
| 10 | 9611-391 | DECAL,REFLECTOR-AMBER LH | 1 | $22.01 | |
| 11 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 12 | 0617-679 | FOAM,AIR SILENCER-REAR | 1 | $50.95 | |
| 13 | 9611-752 | DECAL,EMBLEM-GREEN | 1 | $43.95 | |
| 14 | 6606-432 | SCREEN,AIR SILENCER-RH | 1 | $46.95 | |
| 14 | 6606-433 | SCREEN,AIR SILENCER-LH | 1 | $46.95 | |
| 15 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 16 | 0617-603 | SEAL,AIR SILENCER | 1 | $13.73 | |
| 17 | 2670-263 | CLOSE OFF,STEERING POST/LWR AIR SILENCER | 1 | $17.87 | |
| 18 | 0617-150 | FOAM,STEERING CLOSEOFF-RH | 1 | $6.47 | |
| 18 | 0617-151 | FOAM,STEERING CLOSEOFF-LH | 1 | $22.01 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 2670-262 | PLATE,AIR SILENCER-LWR | 1 | $82.95 | |
| 21 | 0617-139 | FOAM,AIR SILENCER-LWR | 1 | $6.47 | |
| 22 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 23 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 24 | 1670-230 | PUMP,FUEL W/O OIL INLET | 1 | $75.95 | |
| 25 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 26 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 27 | 1619-359 | CONDUIT,FLEXIBLE-SLIT-1/2"X5' | 1 | $20.63 | |
| 29 | 8611-706 | DECAL,600 R DIAGNOSTIC CODE | 1 | $12.95 | |
| 30 | 0770-992 | PLATE,AIR SILENCER-UPR W/INSERT | 1 | $34.95 | |
| 31 | 0423-391 | INSERT,M6X1.0-AL SERIES ALS4-610-4.2 | 1 | $3.57 | |
| 32 | 0617-171 | FOAM,AIR SILENCER-UPR | 1 | $13.73 | |
| 33 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 34 | 1623-052 | NUT,U | 1 | $0.95 | |
| 35 | 2670-247 | BOOT,INTAKE | 1 | $27.95 | |
| 36 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 37 | 2670-335 | CARB,TM40-B430-SNO CROSS | 1 | $1,319.95 | |
| 38 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 39 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 40 | 1623-197 | CLAMP, HOSE-SPRING-14MM | 1 | $2.75 | |
| 41 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 |
