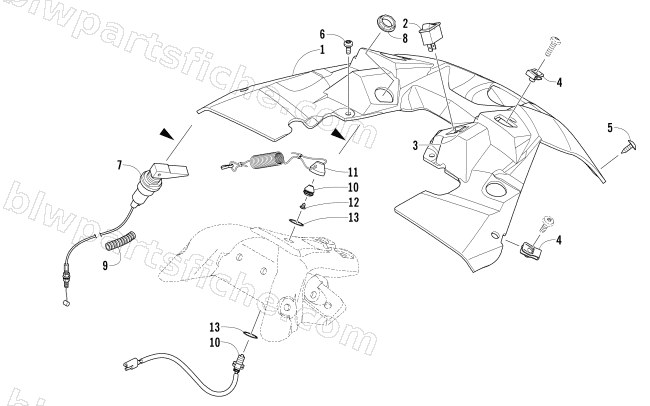

CONSOLE AND SWITCH ASSEMBLY
2014 ZR 6000 SNO PRO R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-824 | CONSOLE,UPPER-BLK | 1 | $211.95 | |
| 2 | 0609-947 | SWITCH,TOGGLE-HAND/THUMB WARMER | 1 | $29.95 | |
| 3 | 1621-286 | DECAL,TOGGLE-ON/OFF | 1 | $4.07 | |
| 4 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 5 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 6 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 7 | 0687-228 | CABLE,CHOKE | 1 | $81.95 | |
| 8 | 0687-181 | NUT,PLASTIC-CHOKE | 1 | $1.64 | |
| 9 | 1619-220 | LOOM,HIGH TEMP-1/4 X 11" | 1 | $20.63 | |
| 10 | 0709-071 | TETHER SWITCH-ASSY(OPEN) | 1 | $92.95 | |
| 11 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 13 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 |
