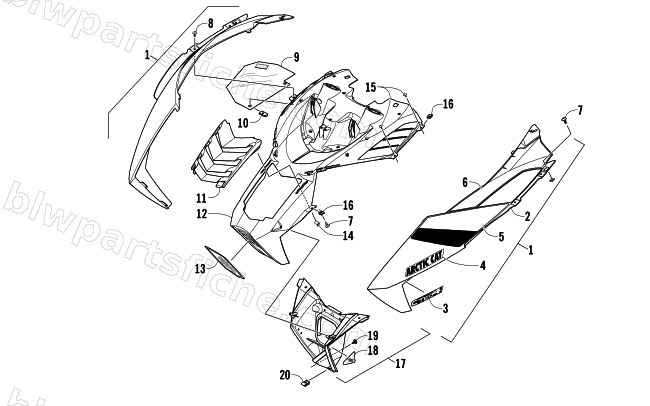

2014 Arctic Cat ZR 7000 SNO PRO LTD — HOOD ASSEMBLY
2014 ZR 7000 SNO PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-050 | HOOD,MAIN-RH ORN-W/DECAL | 1 | $202.95 | |
| 1 | 4718-051 | HOOD,MAIN-LH ORN-W/DECAL | 1 | $202.95 | |
| 1 | 4718-060 | HOOD,MAIN-RH BLK W/DECAL(7000 LTD WHT) | 1 | $160.95 | |
| 1 | 4718-061 | HOOD,MAIN-LH BLK W/DECAL(7000 LTD WHT) | 1 | $160.95 | |
| 2 | 6606-580 | HOOD,MAIN-RH ORGANIC ORN | 1 | $178.95 | |
| 2 | 6606-581 | HOOD,MAIN-LH ORGANIC ORN | 1 | $178.95 | |
| 2 | 6606-318 | HOOD,MAIN-RH-BLK | 1 | $116.95 | |
| 2 | 3718-313 | HOOD,W/FOIL-LH-BLK | 1 | $159.95 | |
| 3 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 4 | 2411-501 | DECAL,FRONT-"ARCTIC CAT" (350/425) | 1 | $10.97 | |
| 5 | 0621-834 | DECAL,HOOD-MID-RH (LTD ORN) | 1 | $24.77 | |
| 5 | 0621-835 | DECAL,HOOD-MID-LH (LTD ORN) | 1 | $24.77 | |
| 5 | 0621-868 | DECAL,HOOD-MID-RH (LTD WHT) | 1 | $24.77 | |
| 5 | 0621-869 | DECAL,HOOD-MID-LH (LTD WHT) | 1 | $24.77 | |
| 6 | 0621-836 | DECAL,HOOD-REAR-RH (LTD ORN) | 1 | $33.95 | |
| 6 | 0621-837 | DECAL,HOOD-REAR-LH (LTD ORN) | 1 | $33.95 | |
| 6 | 0621-870 | DECAL,HOOD-REAR-RH (LTD WHT) | 1 | $37.95 | |
| 6 | 0621-871 | DECAL,HOOD-REAR-LH (LTD WHT) | 1 | $37.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 9 | 1712-899 | SHIELD,HEAT BARRIER | 1 | $89.95 | |
| 10 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 11 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 12 | 6606-510 | PLENUM,AIR INTAKE-UPPER-ROUTED | 1 | $228.95 | |
| 13 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 14 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 17 | 5706-992 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(7) | 1 | $77.95 | |
| 18 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 19 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 20 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 |
