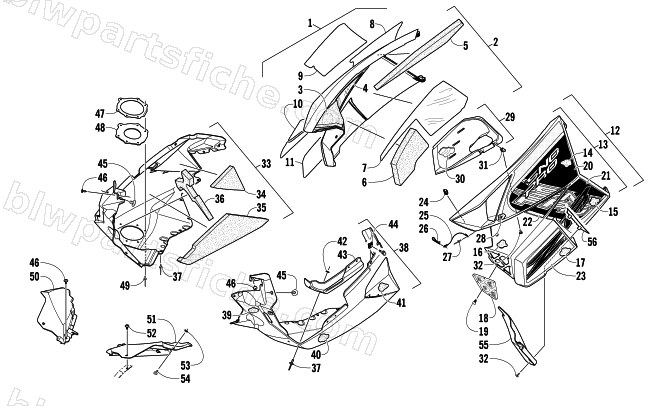

2014 Arctic Cat ZR 7000 SNO PRO — SKID PLATE AND SIDE PANEL ASSEMBLY
2014 ZR 7000 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-854 | PANEL,SIDE-RH ORN-W/DECALS(ZR SP ORN) | 1 | $323.95 | |
| 1 | 3718-868 | PANEL,SIDE-RH GRN W/DECAL(ZR9 SP GRN) | 1 | $244.95 | |
| 2 | 3718-856 | PANEL,SIDE-RH W/FOAM-ORN-ASSY (4 STRK) | 1 | $274.95 | |
| 2 | 3718-860 | PANEL,SIDE-RH W/FOAM-TA GRN (4 STROKE) | 1 | $164.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 0621-696 | DECAL,SIDE PANEL-UPR RH (SP ORN) | 1 | $43.95 | |
| 8 | 0621-678 | DECAL,SIDE PANEL-UPR RH (SP GRN) | 1 | $43.95 | |
| 9 | 0621-702 | DECAL,SIDE PANEL-LWR RH "ZR" (SP ORN) | 1 | $29.95 | |
| 9 | 0621-682 | DECAL,SIDE PANEL-LWR-RH "ZR" (SP GRN) | 1 | $29.95 | |
| 10 | 0621-698 | DECAL,SIDE PANEL-MID RH (SP ORN) | 1 | $13.73 | |
| 10 | 0621-680 | DECAL,SIDE PANEL-MID RH (SP GRN) | 1 | $13.73 | |
| 11 | 0621-700 | DECAL,SIDE PANEL-FWD RH-"ZR" (SP ORN) | 1 | $26.95 | |
| 11 | 0621-684 | DECAL,SIDE PANEL-FWD RH-"ZR" (SP GRN) | 1 | $26.95 | |
| 12 | 3718-855 | PANEL,SIDE-LH ORN-W/DECALS(ZR7 SP ORN) | 1 | $202.95 | |
| 12 | 3718-883 | PANEL,SIDE-LH W/DECALS (ZR SP GRN) | 1 | $323.95 | |
| 13 | 3718-857 | PANEL,SIDE-LH ORN-W/FOAM | 1 | $156.95 | |
| 13 | 3718-859 | PANEL,SIDE-LH W/FOAM-TA GRN | 1 | $274.95 | |
| 14 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 17 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 18 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 19 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 20 | 0621-697 | DECAL,SIDE PANEL-UPR LH (SP ORN) | 1 | $43.95 | |
| 20 | 0621-679 | DECAL,SIDE PANEL-UPR LH (SP GRN) | 1 | $43.95 | |
| 21 | 0621-703 | DECAL,SIDE PANEL-LWR LH "ZR" (SP ORN) | 1 | $29.95 | |
| 21 | 0621-683 | DECAL,SIDE PANEL-LWR-LH "ZR"(SP GRN) | 1 | $29.95 | |
| 22 | 0621-699 | DECAL,SIDE PANEL-MID LH (SP ORN) | 1 | $13.73 | |
| 22 | 0621-681 | DECAL,SIDE PANEL-MID LH (SP GRN) | 1 | $13.73 | |
| 23 | 0621-701 | DECAL,SIDE PANEL-FWD LH-"ZR" (SP ORN) | 1 | $26.95 | |
| 23 | 0621-685 | DECAL,SIDE PANEL-FWD LH-"ZR" (SP GRN) | 1 | $26.95 | |
| 24 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 25 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 26 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 27 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 28 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 29 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 30 | 6606-694 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $3.71 | |
| 31 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 32 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 33 | 3718-788 | PLATE,SKID-REAR RH W/FOAM | 1 | $167.95 | |
| 34 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 35 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 36 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 39 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 40 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 41 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 42 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 43 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 44 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 45 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 46 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 47 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 48 | 2612-964 | SEAL,EXHAUST OUTLET-7000 | 1 | $12.35 | |
| 49 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 | |
| 50 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 51 | 6606-579 | PANEL,FILLER-LH BK-Z3 | 1 | $34.95 | |
| 52 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 53 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 54 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 | |
| 55 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 56 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 |
