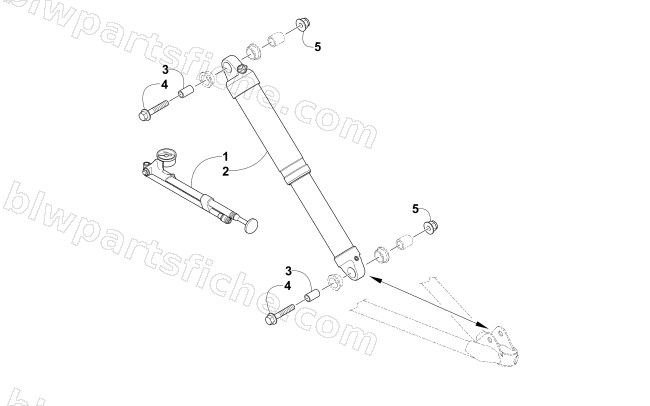

2014 Arctic Cat ZR 8000 SNO PRO LTD — FRONT SHOCK ABSORBER ASSEMBLY

2014 ZR 8000 SNO PRO LTD

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	2603-614	PUMP,FOX HP W/BLEED-150 PSI (FLOAT2)	1	$69.95
2	3703-254	R/B 3703-343	1	$792.95
3	3604-109	SLEEVE,SHOCK EYELET-10mm ID	1	$4.40
4	8408-050	SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y	1	$2.75
5	8427-002	NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y	1	$0.95
