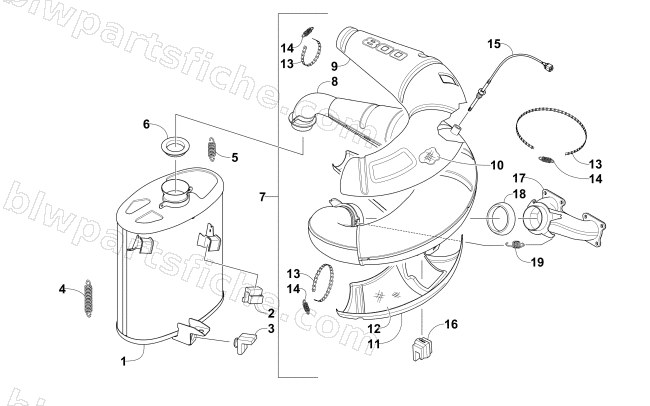

2014 Arctic Cat ZR 8000 SNO PRO RR NORWAY EDITION — EXHAUST ASSEMBLY
2014 ZR 8000 SNO PRO RR NORWAY EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2712-007 | RESONATOR,EXHAUST-BLK CERAMIC COATED | 1 | $1,110.95 | |
| 2 | 2612-893 | GROMMET,RUBBER-UPR | 1 | $17.87 | |
| 3 | 2612-706 | GROMMET,RUBBER-LOWER | 1 | $5.65 | |
| 4 | 2612-949 | SPRING,EXHAUST-2.70" | 1 | $5.51 | |
| 5 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 6 | 1612-619 | GASKET,EXHAUST-TAIL PIPE (03 900) | 1 | $26.95 | |
| 7 | 1712-771 | R/B 1712-792 | 1 | $798.95 | |
| 8 | 1712-792 | CHAMBER,EXPANSION-800 PTD BLK | 1 | $497.95 | |
| 9 | 2612-797 | COVER,EXP CHAMBER-UPR | 1 | $128.95 | |
| 10 | 2612-660 | PACKING,EXP CHAMBER-UPR | 1 | $34.95 | |
| 12 | 2612-661 | PACKING,EXP CHAMBER-LWR | 1 | $34.95 | |
| 13 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 13 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 14 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 15 | 0630-330 | SENSOR,EXHAUST TEMP-M14 X 1.5 | 1 | $213.95 | |
| 16 | 2612-667 | GROMMET,RUBBER-EXP CHAMBER | 1 | $16.49 | |
| 17 | 1712-559 | MANIFOLD,EXHAUST-MACH | 1 | $174.95 | |
| 18 | 2612-059 | GASKET, EXHAUST - HEADPIPE | 1 | $30.95 | |
| 19 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 |
