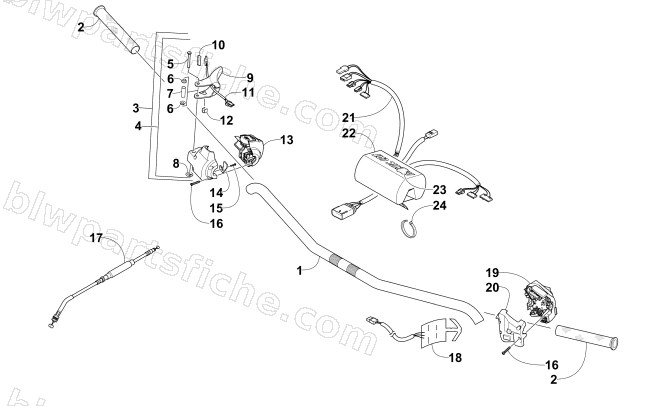

2014 Arctic Cat ZR 8000 SNO PRO RR NORWAY EDITION — HANDLEBAR AND CONTROLS
2014 ZR 8000 SNO PRO RR NORWAY EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-092 | HANDLEBAR-PTD BLK | 1 | $77.95 | |
| 2 | 4606-945 | GRIP,HANDLEBAR-6.25" | 1 | $17.87 | |
| 3 | 0609-888 | CONTROL,THROTTLE-R/H-REAR (36MM) | 1 | $105.95 | |
| 4 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 11 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 12 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 13 | 0609-880 | CONTROL, R/H-FRONT W/REV-2 STRK-2010 | 1 | $94.95 | |
| 14 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 15 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 16 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 17 | 0687-223 | CABLE,THROTTLE | 1 | $60.95 | |
| 18 | 0609-856 | ELEMENT,HW-RH H/L | 1 | $46.95 | |
| 18 | 0609-857 | ELEMENT,HW-LH H/L | 1 | $46.95 | |
| 19 | 0609-929 | CONTROL,LH-W/O PTT-FRT | 1 | $96.95 | |
| 20 | 0609-883 | CONTROL,L/H-REAR | 1 | $13.73 | |
| 21 | 1686-654 | HARNESS,HANDLEBAR-2 STRK-HCR | 1 | $185.95 | |
| 22 | 1705-453 | WRAP,HANDLEBAR - ASSY | 1 | $54.95 | |
| 23 | 0605-986 | FOAM,HANDLEBAR | 1 | $19.25 | |
| 24 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
