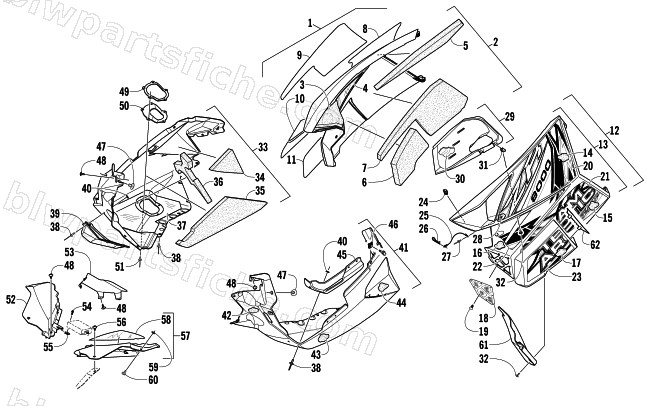

2014 Arctic Cat ZR 8000 SNO PRO RR NORWAY EDITION — SKID PLATE AND SIDE PANEL ASSEMBLY
2014 ZR 8000 SNO PRO RR NORWAY EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-922 | PANEL,SIDE-RH W/DECALS(ZR 8000 RR) | 1 | $348.95 | |
| 2 | 3718-858 | PANEL,SIDE-RH W/FOAM-TA GRN(2 STROKE) | 1 | $267.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 0617-634 | FOAM,LWR SIDE PANEL-REAR-RH | 1 | $39.95 | |
| 8 | 0621-666 | DECAL,SIDE PANEL-UPR RH (ZR RR) | 1 | $45.95 | |
| 9 | 0621-670 | DECAL,SIDE PANEL-LWR RH ZR RR) | 1 | $29.95 | |
| 10 | 0621-674 | DECAL,SIDE PANEL-MID RH (ZR RR) | 1 | $29.95 | |
| 11 | 0621-672 | DECAL,SIDE PANEL-FWD RH (ZR RR) | 1 | $26.95 | |
| 12 | 3718-923 | PANEL,SIDE-LH W/DECALS(ZR 8000 RR) | 1 | $348.95 | |
| 13 | 3718-859 | PANEL,SIDE-LH W/FOAM-TA GRN | 1 | $274.95 | |
| 14 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 17 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 18 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 19 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 20 | 0621-667 | DECAL,SIDE PANEL-UPR LH (ZR RR) | 1 | $45.95 | |
| 21 | 0621-671 | DECAL,SIDE PANEL-LWR LH ZR RR) | 1 | $29.95 | |
| 22 | 0621-675 | DECAL,SIDE PANEL-MID LH (ZR RR) | 1 | $29.95 | |
| 23 | 0621-673 | DECAL,SIDE PANEL-FWD LH (ZR RR) | 1 | $26.95 | |
| 24 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 25 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 26 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 27 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 28 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 29 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 30 | 6606-694 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $3.71 | |
| 31 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 32 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 33 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 34 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 35 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 36 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 37 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 38 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 39 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 40 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 41 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 42 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 43 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 44 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 45 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 46 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 47 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 48 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 49 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 50 | 2612-795 | SEAL,EXHAUT OUTLET-2 STRK | 1 | $17.87 | |
| 51 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 52 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 53 | 6606-295 | SHIELD,HEAT-ECU | 1 | $24.95 | |
| 54 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 55 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 56 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 57 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 58 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 59 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 60 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 | |
| 61 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 62 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 |
