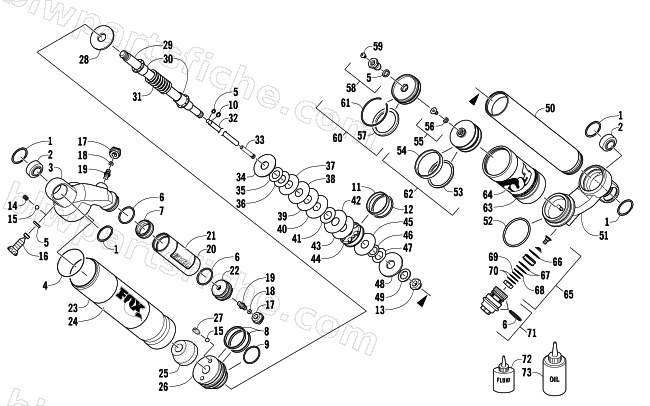

FRONT SUSPENSION SHOCK ABSORBER
2014 ZR 8000 SNO PRO RR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-908 | SHOCK,SKI-EVOL X-RH (XC) | 1 | $1,188.95 | |
| 0 | 2703-909 | SHOCK,SKI-EVOL X-LH (XC) | 1 | $1,188.95 | |
| 1 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 2 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 3 | 2603-027 | CAP,BODY-FLOAT EVOL-LH GLAND | 1 | $216.95 | |
| 3 | 2603-026 | CAP,BODY-FLOAT EVOL-RH GLAND | 1 | $217.95 | |
| 4 | 2603-929 | KIT,REBUILD-SEAL/BEARING - SKI SHOCK | 1 | $189.95 | |
| 5 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 6 | 2603-502 | O-RING,.070 CS X .989 ID | 1 | $6.95 | |
| 7 | 3604-653 | IFP, EVOL CHAMBER-ASSY | 1 | $47.95 | |
| 8 | 2603-863 | BEARING,AIR SLEEVE-TURCITE -FLOAT | 1 | $20.95 | |
| 9 | 1604-420 | O-RING | 1 | $4.95 | |
| 10 | 3603-011 | O-RING,.070 CS X .101 ID | 1 | $4.95 | |
| 11 | 2603-994 | BEARING,EXTERNAL GLIDE RING-1.459" BORE | 1 | $26.95 | |
| 12 | 3603-010 | O-RING, 1.5mm CS X 25mm ID | 1 | $1.95 | |
| 13 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 14 | 2603-529 | SPRING,REBOUND DETENT | 1 | $8.95 | |
| 15 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 16 | 3603-004 | KNOB,RD ADJUST-3/8-32-1.45"TLG | 1 | $33.95 | |
| 17 | 2603-980 | CAP,VALVE-EVOL ADAPTER-GREEN (FOX) | 1 | $5.65 | |
| 18 | 2603-965 | SEAL,CAP-EVOL AIR VALVE-.296"ODX.125"ID | 1 | $1.64 | |
| 19 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 20 | 3603-002 | RESERVOIR,EVOL CHAMBER-4.50" | 1 | $54.95 | |
| 21 | 2603-958 | DECAL,GEN 2 FLOAT X EVOL CHAMBER | 1 | $19.25 | |
| 22 | 2603-966 | END CAP,EVOL CHAMBER-1.07"BOREX.727"TLG | 1 | $25.95 | |
| 23 | 2603-025 | SLEEVE,DUAL WIPER-1.834IDX2.08ODX8.415" | 1 | $118.95 | |
| 24 | 3603-006 | DECAL,GEN 2 FLOAT X AIR SLEEVE-5.4X5.31 | 1 | $29.95 | |
| 25 | 3603-005 | BUMPER,BLACK-.498 SHAFT X .883" TLG | 1 | $18.95 | |
| 26 | 2603-023 | BEARING,FLOAT-ASSY-.645 DEEP NEG.SPR | 1 | $140.95 | |
| 27 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 28 | 3603-008 | SPACER,SHAFT-.504ID X 1.125OD X .100"THK | 1 | $33.95 | |
| 29 | 2603-029 | SHAFT,CHROME-.180"ID X .498"OD X 8.825" | 1 | $85.95 | |
| 30 | 2603-522 | GUIDE,SPRING-1.15OD X .800 TLG | 1 | $89.95 | |
| 31 | 2603-024 | SPRING,NEG.-2.500TLGX0.830IDX200LBS/IN | 1 | $17.95 | |
| 32 | 3603-001 | ROD,DAMPING ADJUST-.166 OD X 8.705" | 1 | $79.95 | |
| 33 | 2603-943 | JET,DAMPING ADJUST-.122ID X .375OD X1.6" | 1 | $28.95 | |
| 34 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 35 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 36 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 37 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 38 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 39 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 40 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 41 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 42 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 43 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 44 | 2603-995 | PISTON,HIGH FLOW-PM-.059 ORIFICE | 1 | $41.95 | |
| 45 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 46 | 3604-171 | VALVE, .600X.004(3/8ID) | 1 | $12.95 | |
| 47 | 0603-333 | VALVE, .800X.006(3/8ID) | 1 | $13.95 | |
| 48 | 3604-170 | PLATE,TOP-OUT-1.125OD X .378ID X .080 | 1 | $21.95 | |
| 49 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 50 | 2603-022 | BODY,FLOAT-1.459 X 8.885" | 1 | $241.95 | |
| 51 | 2603-021 | BODY,CAP-ASSY-PIGGYBACK-1.459 BORE | 1 | $194.95 | |
| 52 | 3604-539 | KIT,REBUILD-1.834" BORE-RESERVOIR | 1 | $200.95 | |
| 53 | 1603-236 | O-RING, .210 C.S. X 1.350 ID | 1 | $11.95 | |
| 54 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 55 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 56 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 57 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 58 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 59 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 60 | 2603-525 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $76.95 | |
| 61 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 62 | 3604-524 | PISTON,FLOATING-ASSY-1.834" BORE | 1 | $117.95 | |
| 63 | 2603-515 | RESERVOIR,1.834 BORE X 4.00 TLG | 1 | $164.95 | |
| 64 | 3603-007 | DECAL,GEN 2 FLOAT X RES.-2.15" X 6.25" | 1 | $22.01 | |
| 65 | 3603-003 | DAMPING ADJ. ASSY,PISTON-CONCENTRIC | 1 | $113.95 | |
| 66 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 67 | 2603-501 | VALVE,SHOCK-.700 X.010(1/4ID) | 1 | $13.95 | |
| 68 | 2603-500 | VALVE,SHOCK-.600 X.010(1/4ID) | 1 | $14.95 | |
| 69 | 2603-499 | VALVE,SHOCK-.500 X.006(1/4ID) | 1 | $18.95 | |
| 70 | 3604-165 | WASHER,BACKUP-.400OD X .252ID X .020THK | 1 | $13.95 | |
| 71 | 2603-527 | CARTRIDGE,SINGLE ADJ-DAMP ADJ ASSY | 1 | $112.95 | |
| 72 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 73 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
