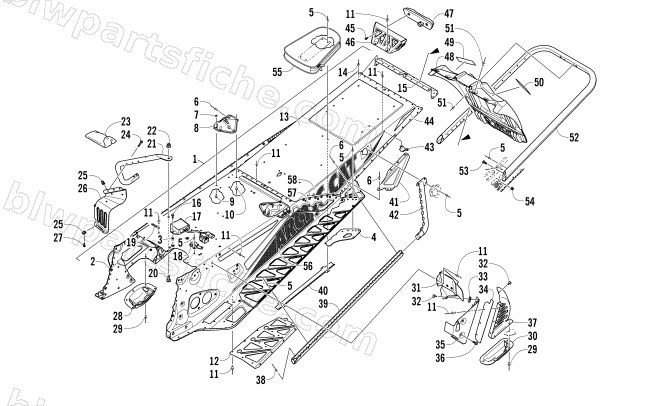

2014 Arctic Cat ZR 9000 SNO PRO RR — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2014 ZR 9000 SNO PRO RR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2707-313 | CHASSIS,128 4STRK-RR S/P ASSY-PTD TA GRN | 1 | $2,312.95 | |
| 1 | 2707-312 | TUNNEL,HP-S/P ASSY-PTD TA GRN | 1 | $1,276.95 | |
| 2 | 2707-311 | TUNNEL,FRONT-ASSY-PTD TA GRN | 1 | $700.95 | |
| 3 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 4 | 2707-318 | BRKT,REAR SUSP-OUTER-RH-PTD TA GRN | 1 | $24.77 | |
| 4 | 2707-319 | BRKT,REAR SUSP-OUTER-LH-PTD TA GRN | 1 | $24.77 | |
| 5 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 6 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 7 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 8 | 2707-124 | BRKT,SPAR SUPPORT-RH-PTD TEAM ARC GRN | 1 | $32.95 | |
| 8 | 2707-125 | BRKT,SPAR SUPPORT-LH-PTD TEAM ARC GRN | 1 | $32.95 | |
| 9 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 10 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 11 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 12 | 2707-316 | SUPPORT,RUNNING BOARD-RH-PTD TA GRN | 1 | $106.95 | |
| 12 | 2707-317 | SUPPORT,RUNNING BOARD-LH-PTD TA GRN | 1 | $106.95 | |
| 13 | 2707-314 | TUNNEL,REAR-128-PTD TA GRN | 1 | $201.95 | |
| 14 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 15 | 2707-315 | END CAP,TUNNEL-PTD TA GRN | 1 | $38.95 | |
| 16 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 | |
| 17 | 0630-288 | REGULATOR, 3 PHASE-40A DC | 1 | $188.95 | |
| 18 | 0645-709 | CLIP,BATTERY CABLE | 1 | $5.09 | |
| 19 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 20 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 21 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 21 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 22 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 23 | 0744-079 | KIT,TOOL BAG-4 STRK RR-ASSY | 1 | $50.95 | |
| 24 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 25 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 26 | 2707-004 | TOE STOP,RH-FORMED-PTD TEAM ARCTIC GRN | 1 | $29.95 | |
| 26 | 2707-005 | TOE STOP,LH-FORMED-PTD TEAM ARCTIC GRN | 1 | $29.95 | |
| 27 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 28 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 29 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 30 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 31 | 1702-278 | MOUNT,CLUTCH GUARD-ASSY | 1 | $27.95 | |
| 32 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 33 | 1623-052 | NUT,U | 1 | $0.95 | |
| 34 | 2707-007 | GUARD,TOE-PTD TEAM ARCTIC GREEN | 1 | $12.35 | |
| 35 | 1607-118 | COVER,SHIELD-BRAKE CALIPER | 1 | $34.95 | |
| 36 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 37 | 2707-006 | COVER,SHIELD-BRAKE DISC-PTD TA GRN | 1 | $43.95 | |
| 38 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 39 | 2707-132 | EDGE,RUNNING BOARD-RH PTD TEAM ARC GRN | 1 | $66.95 | |
| 39 | 2707-133 | EDGE,RUNNING BOARD-LH PTD TEAM ARC GRN | 1 | $66.95 | |
| 40 | 0630-308 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $16.49 | |
| 41 | 2707-320 | GUSSET,RUNNING BOARD-RH-PTD TA GRN | 1 | $29.95 | |
| 41 | 2707-321 | GUSSET,RUNNING BOARD-LH-PTD TA GRN | 1 | $29.95 | |
| 42 | 2707-338 | GUSSET,TUNNEL-RH-PTD TA GRN | 1 | $30.95 | |
| 42 | 2707-339 | GUSSET,TUNNEL-LH-PTD TA GRN | 1 | $30.95 | |
| 43 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 44 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 45 | 8470-512 | SCREW,MACH-TSPNH M5X.8X12 CL8.8 Z&Y | 1 | $0.95 | |
| 46 | 0730-198 | R/B 0730-230 | 1 | $34.95 | |
| 47 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 48 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 49 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 50 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 51 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 52 | 2707-578 | BUMPER,REAR-129"-PTD-BLK | 1 | $101.95 | |
| 53 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 54 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 55 | 6606-615 | BAG,BELT | 1 | $46.95 | |
| 56 | 0621-660 | DECAL,TUNNEL-"ARCTIC CAT" RH 3 | 1 | $29.95 | |
| 56 | 0621-661 | DECAL,TUNNEL-"ARCTIC CAT" LH 3 | 1 | $29.95 | |
| 57 | 0621-658 | DECAL,TUNNEL-"ARCTIC CAT" RH 2 | 1 | $12.35 | |
| 57 | 0621-659 | DECAL,TUNNEL-"ARCTIC CAT" LH 2 | 1 | $12.35 | |
| 58 | 0621-656 | DECAL,TUNNEL-"ARCTIC CAT" RH 1 | 1 | $29.95 | |
| 58 | 0621-657 | DECAL,TUNNEL-"ARCTIC CAT" LH 1 | 1 | $29.95 |
