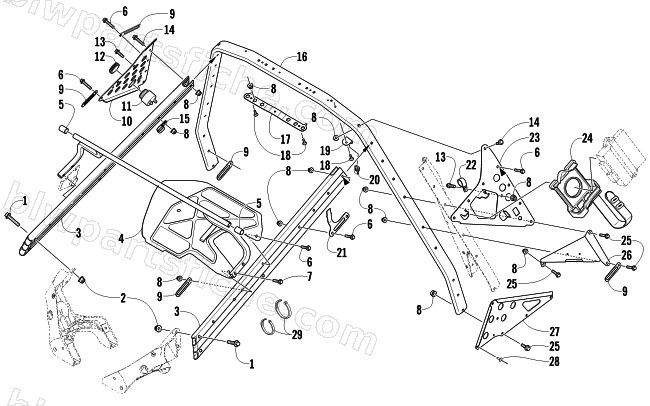

STEERING SUPPORT ASSEMBLY
2015 BEARCAT 5000 XT LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 2 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 3 | 0607-814 | FRAME,UPR-FRT INNER-MACH | 1 | $38.95 | |
| 4 | 4706-568 | SUPPORT, HEADLIGHT-Z1 XT-PTD BLK | 1 | $169.95 | |
| 5 | 1623-900 | SPACER,HOOD CLIP-12.7X15.9X25.4 | 1 | $0.68 | |
| 6 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 8408-645 | SCREW,CAP-HFH M6X1.0X45 CL8.8 Z&Y | 1 | $1.50 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 10 | 0607-808 | GUSSET,SUPPORT-STEERING SUPPORT/SPAR-RH | 1 | $54.95 | |
| 11 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 12 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 13 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 14 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 15 | 1623-762 | CLAMP,DOUBLE TUBE | 1 | $6.75 | |
| 16 | 0605-964 | SUPPORT, STEERING-MACH-BCWT | 1 | $133.95 | |
| 17 | 5606-137 | PLATE,NUT-STEERING SUPPORT-2 STROKE | 1 | $34.95 | |
| 18 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 19 | 2670-015 | BRKT,MTG-AIRBOX (4-STROKE) | 1 | $4.95 | |
| 20 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 21 | 4606-925 | BRKT,SENSOR-MAP | 1 | $16.49 | |
| 22 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 23 | 1607-093 | GUSSET,SUPPORT-STEERING SUPPORT/SPAR-LH | 1 | $60.95 | |
| 24 | 0645-506 | MOUNT,ECU | 1 | $34.95 | |
| 25 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 26 | 4606-908 | BRKT,SUPPORT-CLUTCH GUARD | 1 | $16.49 | |
| 27 | 3706-632 | BRKT, OUTER FOOTREST-RH-PTD BLK | 1 | $23.39 | |
| 27 | 3706-633 | BRKT, OUTER FOOTREST-LH-PTD BLK | 1 | $23.39 | |
| 28 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
